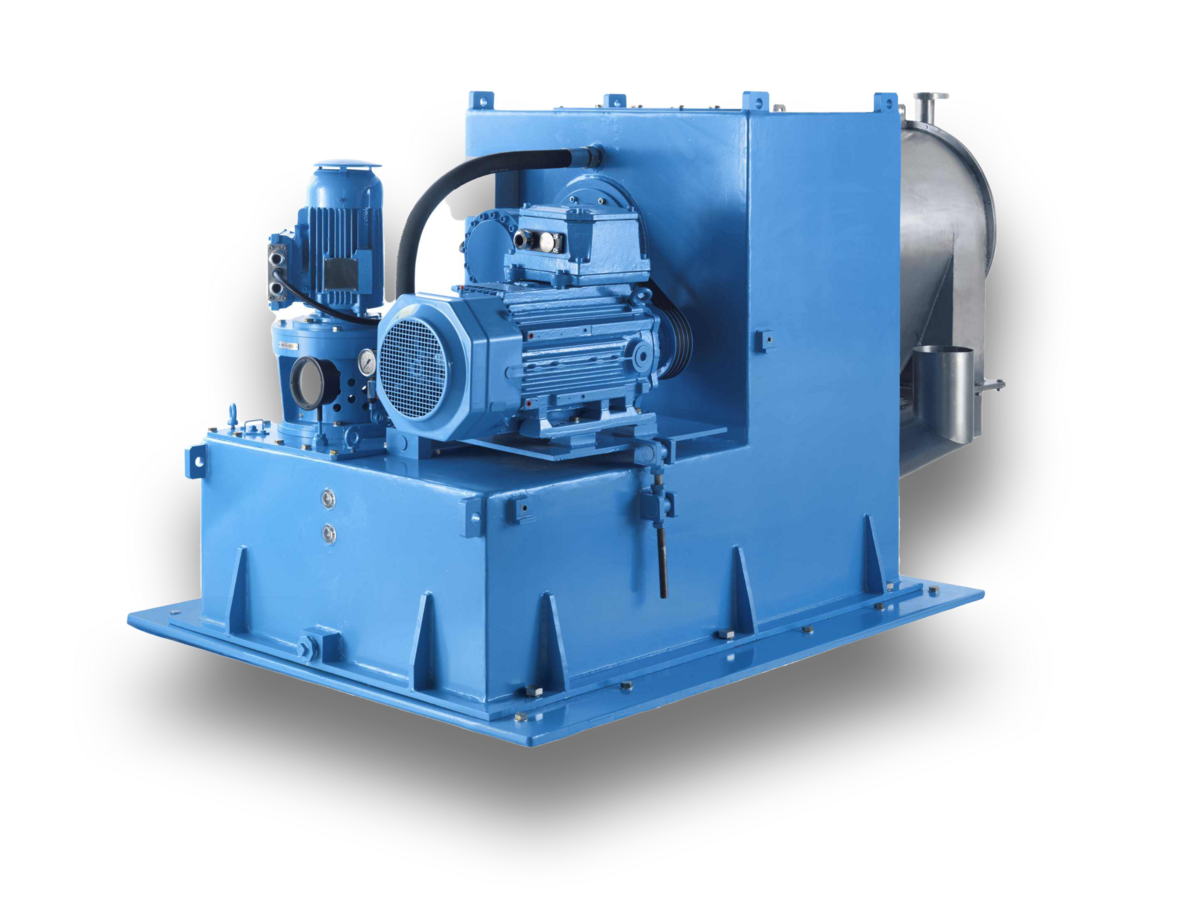

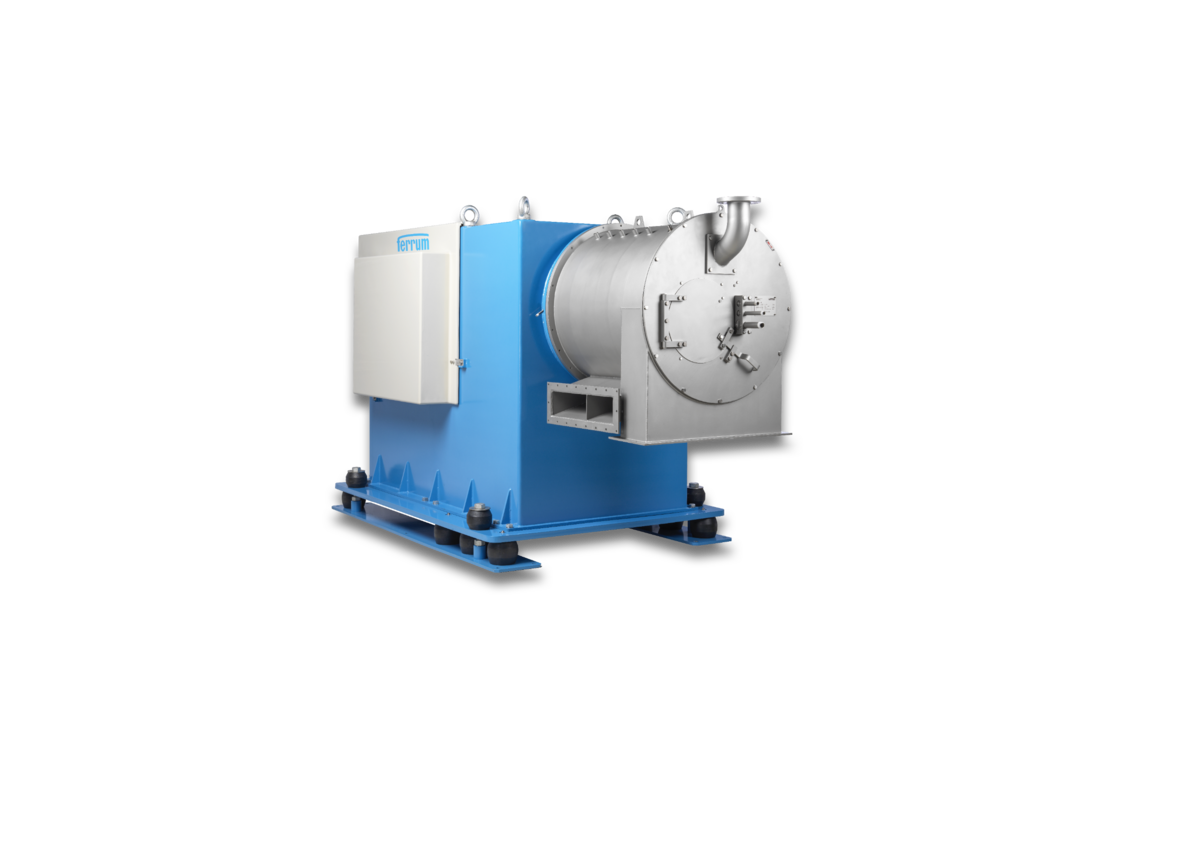

Pusher centrifuge P-360 to P-630
Simple and robust
Based on the highly successful Sulzer Escher Wyss design, Ferrum has consistently developed this pusher centrifuge further, always in line with the latest requirements and guidelines.
Video
Features
- Hydraulic drive
- Application-specific optimisation options: Inlet and discharge sections, sieve segments, solids discharge, product washing, etc.
Technical data
| P-360 | P-500 | P-630 | |
|---|---|---|---|
| Basket diameter | 360 [mm] | 500 [mm] | 630 [mm] |
| Number of stages | 1 - 2 | 1 - 2 | 2 |
| Max. Rotor speed | 3‘000 [min-1] | 2‘200 [min-1] | 1‘500 [min-1] |
| Max number of strokes | 100 [min-1] | 85 [min-1] | 85 [min-1] |
| Max. G-force | 1‘810 [g] | 1‘352 [g] | 792 [g] |
| El. power installed with NaCl rotor / stroke | 11/75 [kW] | 22/15 [kW] | 45/22 [kW] |
| Weight | 3‘500 [kg] | 5‘300 [kg] | 7‘000 [kg] |
| Maximum NaCl throughput / dependent on feed conditions) | 7 [t/h] | 13 [t/h] | 25 [t/h] |
| Dimensions | P-360 | P-500 | P-630 |
|---|---|---|---|
| Length | 2‘700 (mm) | 3‘550 (mm) | 3‘630 (mm) |
| Width | 1‘400 (mm) | 1‘420 (mm) | 2‘000 (mm) |
| Height without vibration isolation | 1‘250 (mm) | 1‘640 (mm) | 1‘770 (mm) |
| Height with vibration isolation, without counterweight | 1‘400 (mm) | 1‘800 (mm) | 1‘970 (mm) |
