Isolator Centrifuges VTC-I

Toxic

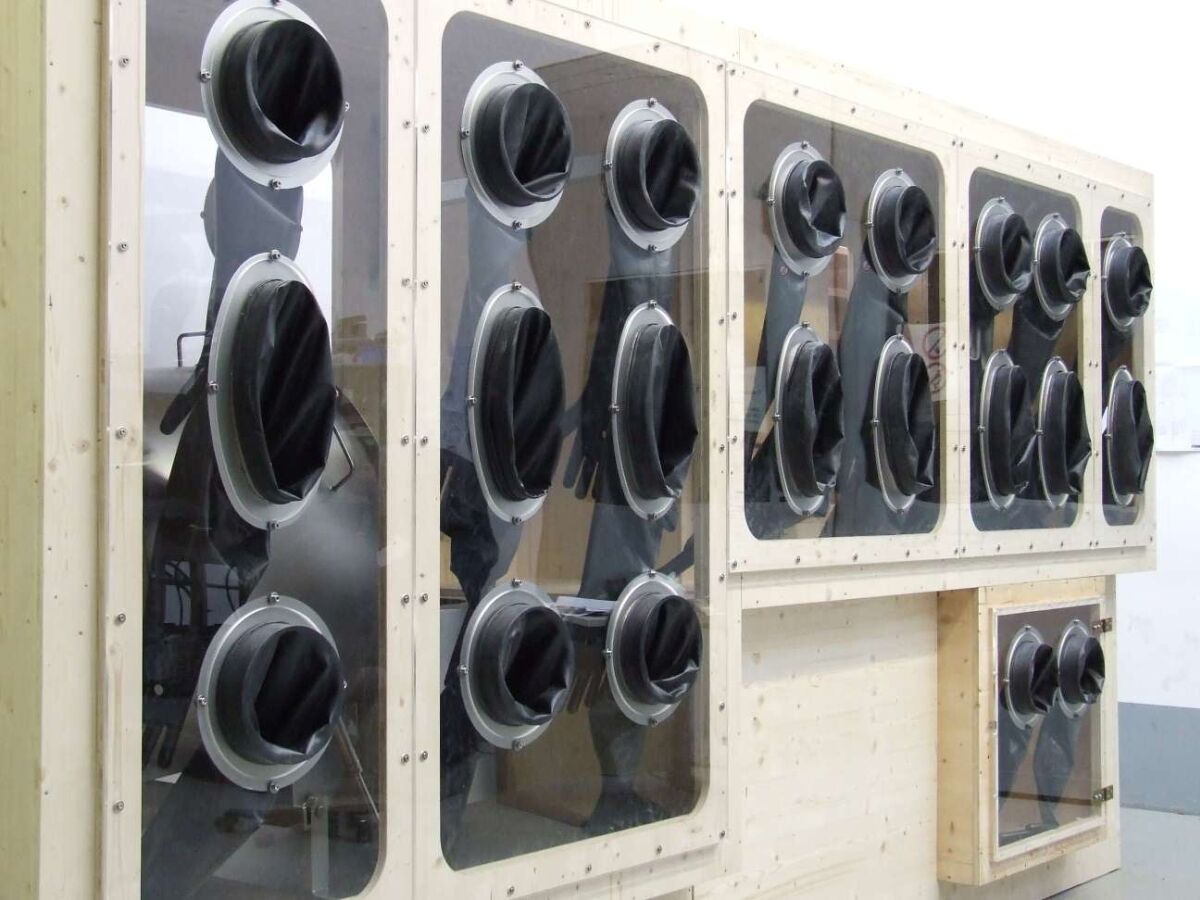

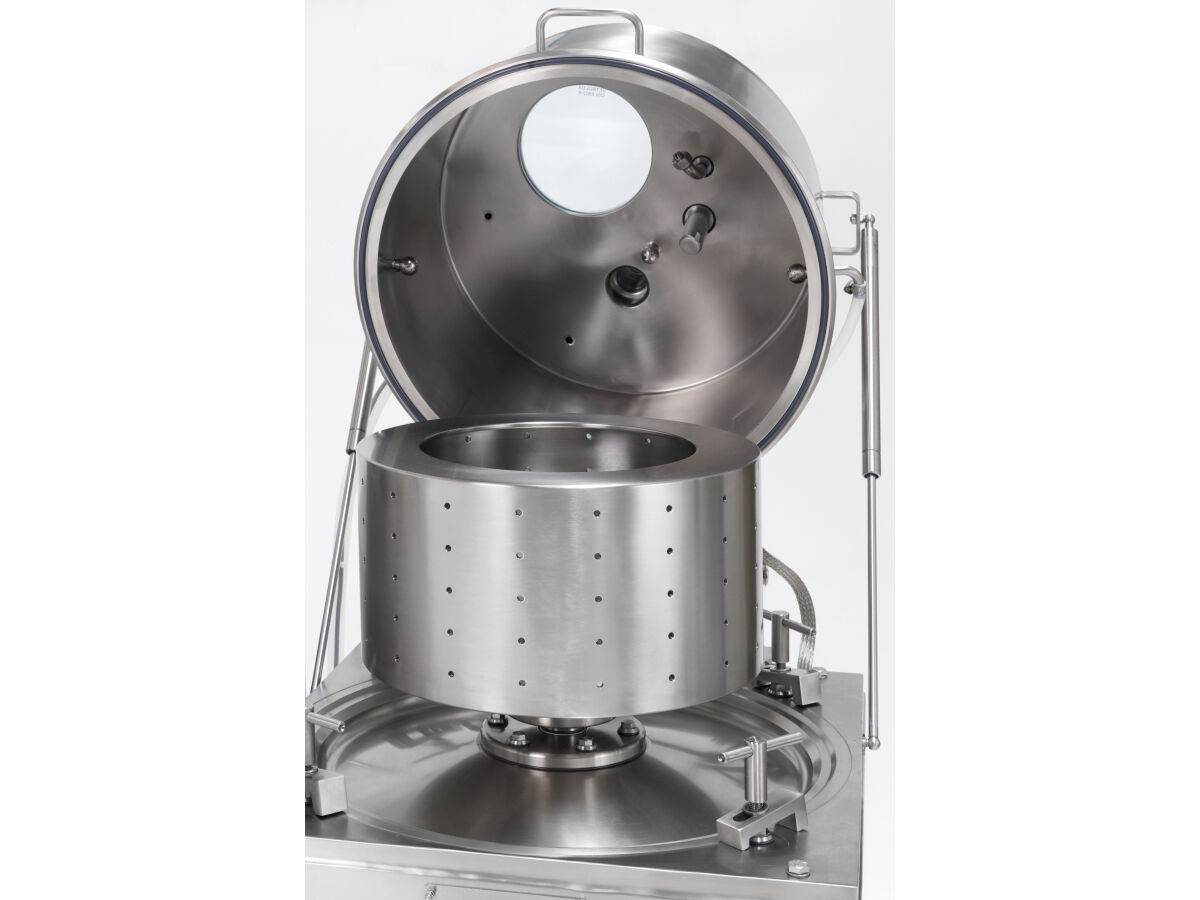

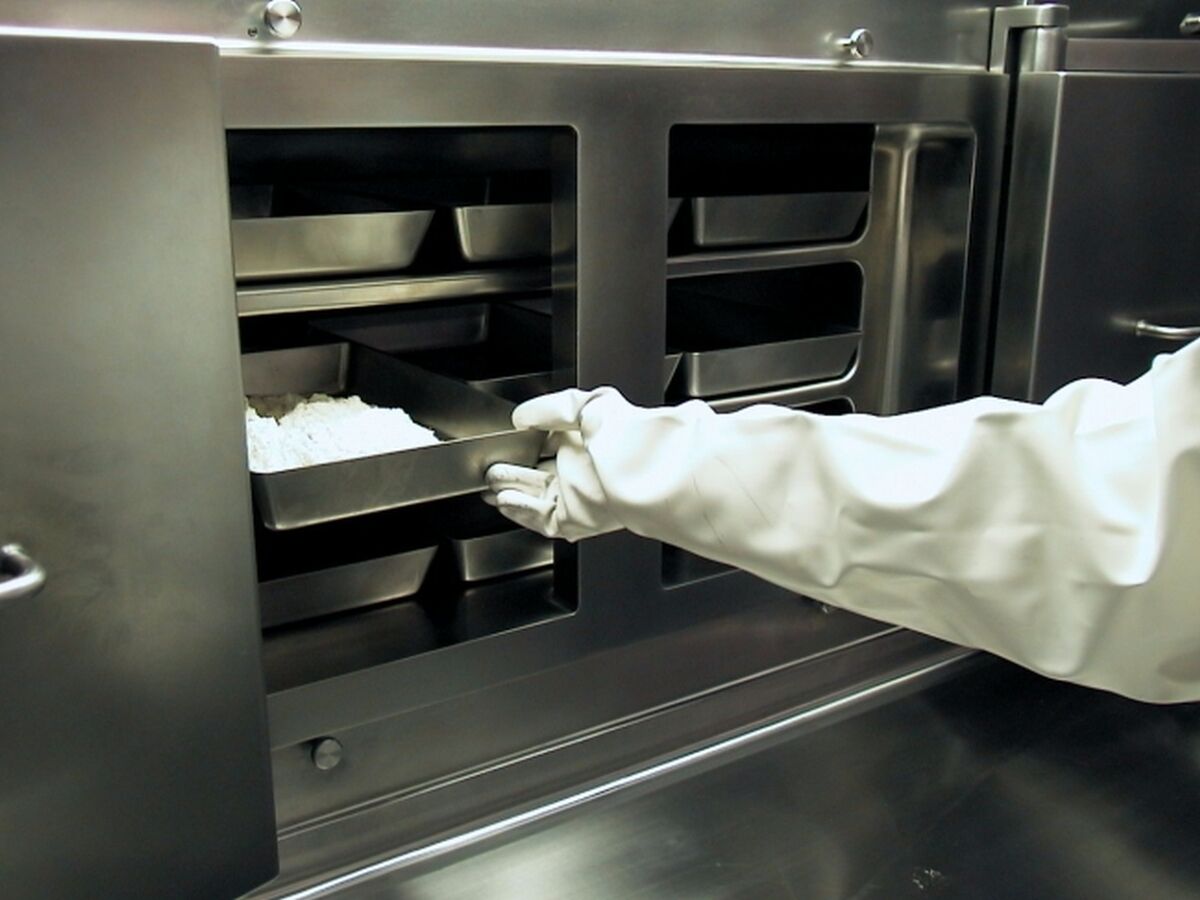

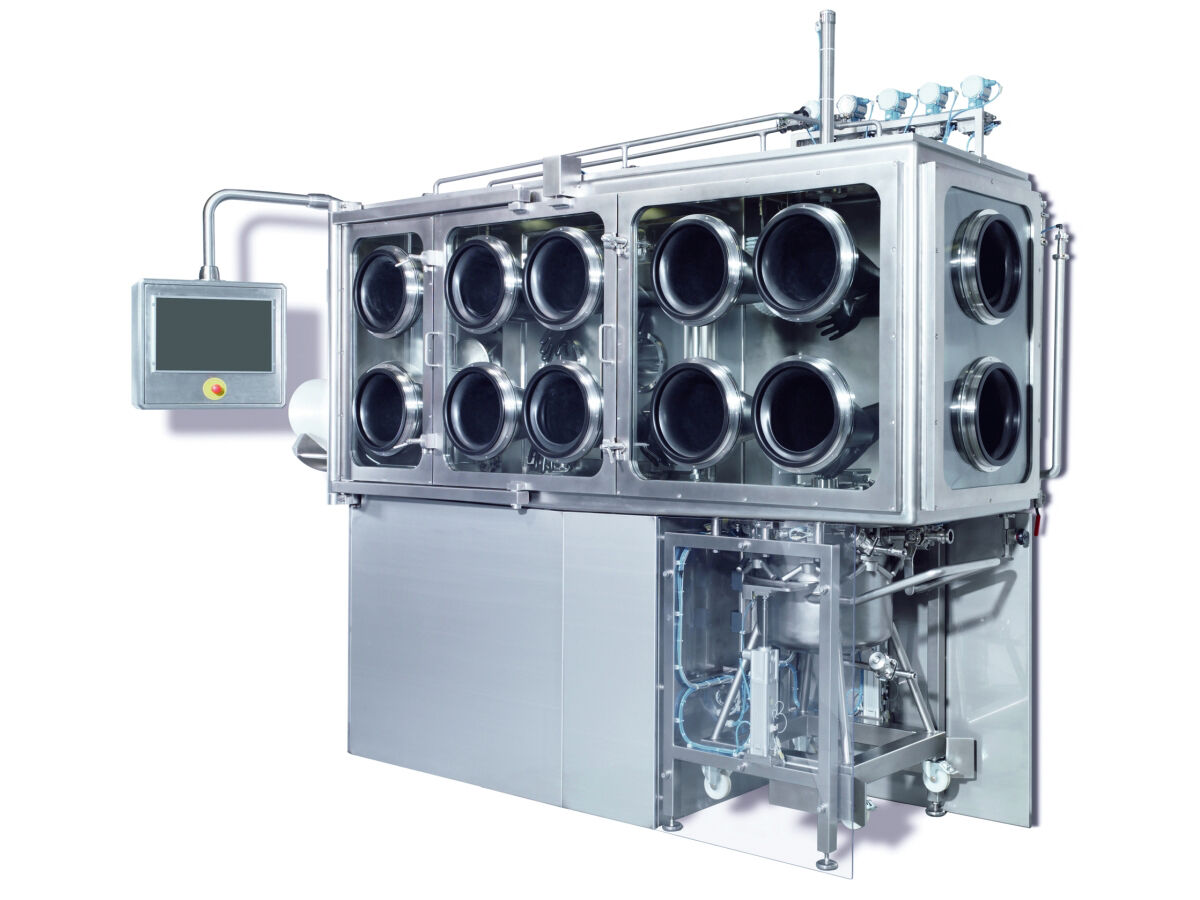

The VTC isolator centrifuge was specially developed for use in an isolator. This combination allows you to transfer highly active pharmaceutical ingredients (HAPI) without contamination from the isolator centrifuge to the next process step (e.g. vacuum tray dryer). The solids can be discharged from the basket manually or using a lifting device.

The system is used for pilot plants as well as low volume production in the pharmaceutical industry.

Feinchemie Pharma

Features

Reliable design in accordance with the latest standards/GMP requirements
Compact special design for installation in an isolator

Optimally designed controls for easy, efficient operation in an isolator
Suitable for potentially explosive areas according to directive 2014/34/EU (ATEX)

Technical data

VTC-I	320/160	400/200	Unit
Basket diameter	320	400	[mm]
Basket height	160	200	[mm]
Filter surface	0.16	0.25	[m2]
Useful volume (100%)	6.6	12.8	[dm3]
Max. load	8.2	16	[kg]
Max. rotor speed	3000	2700	[min-1]
Max. G force	1610	1630	[g]
Centrifuge weight (without load)	200	300	[kg]
Motor power for main drive	1.5	2.2	[kW]

Design pressure: -100 to +500 [mbarg], operating pressure: 4-20 [mbarg], gas tightness: 40 [mbarg], product temperature range: 0-80 [°C], ambient temperature: 10-30 [°C]
Other pressure and temperature ranges as well as motor sizes upon request.

VTC-I	500/250	50/350	Unit
Basket diameter	500	500	[mm]
Basket height	250	350	[mm]
Filter surface	0.39	0.55	[m2]
Useful volume (100%)	25	35	[dm3]
Max. load	31.3	43.8	[kg]
Max. rotor speed	2400	2400	[min-1]
Max. G force	1610	1610	[g]
Centrifuge weight (without load)	400	420	[kg]
Motor power for main drive	3.0	3.0	[kW]
