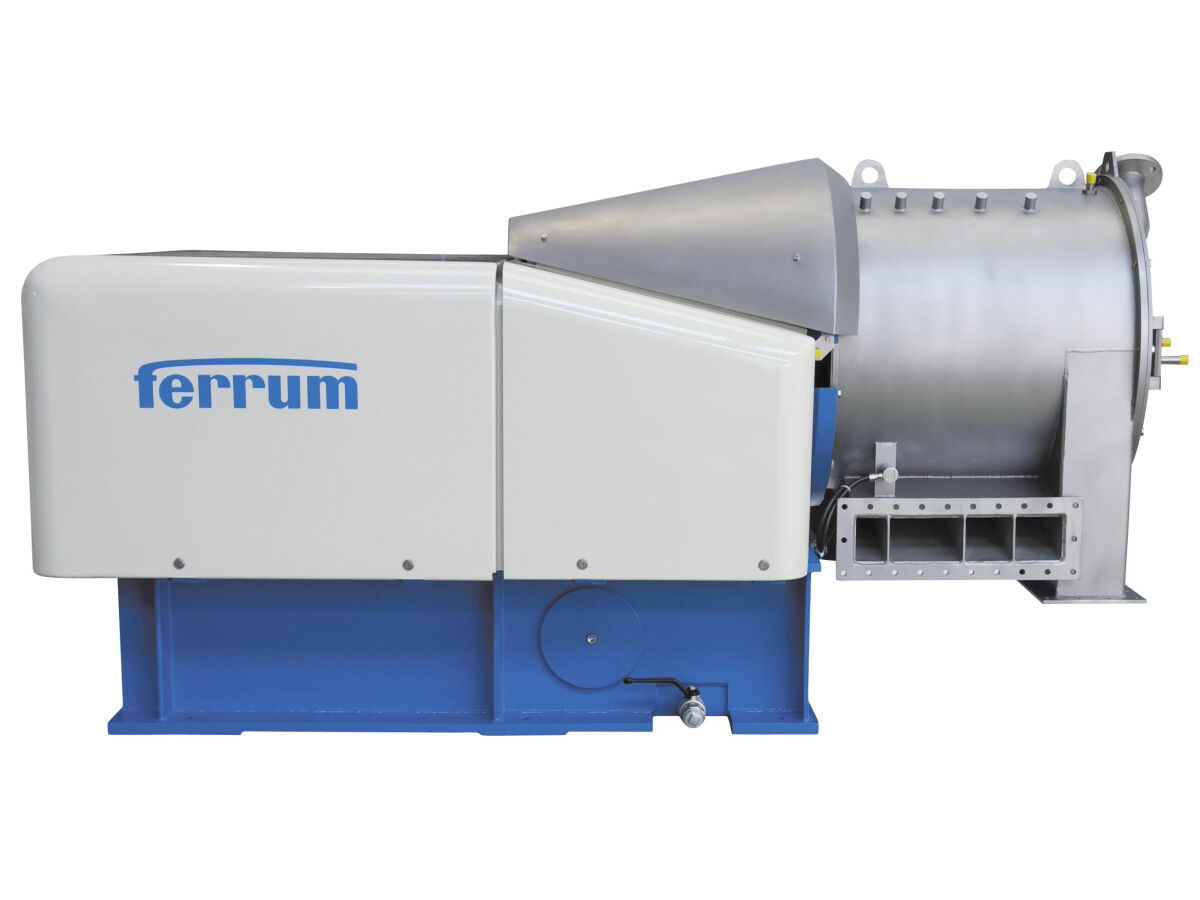

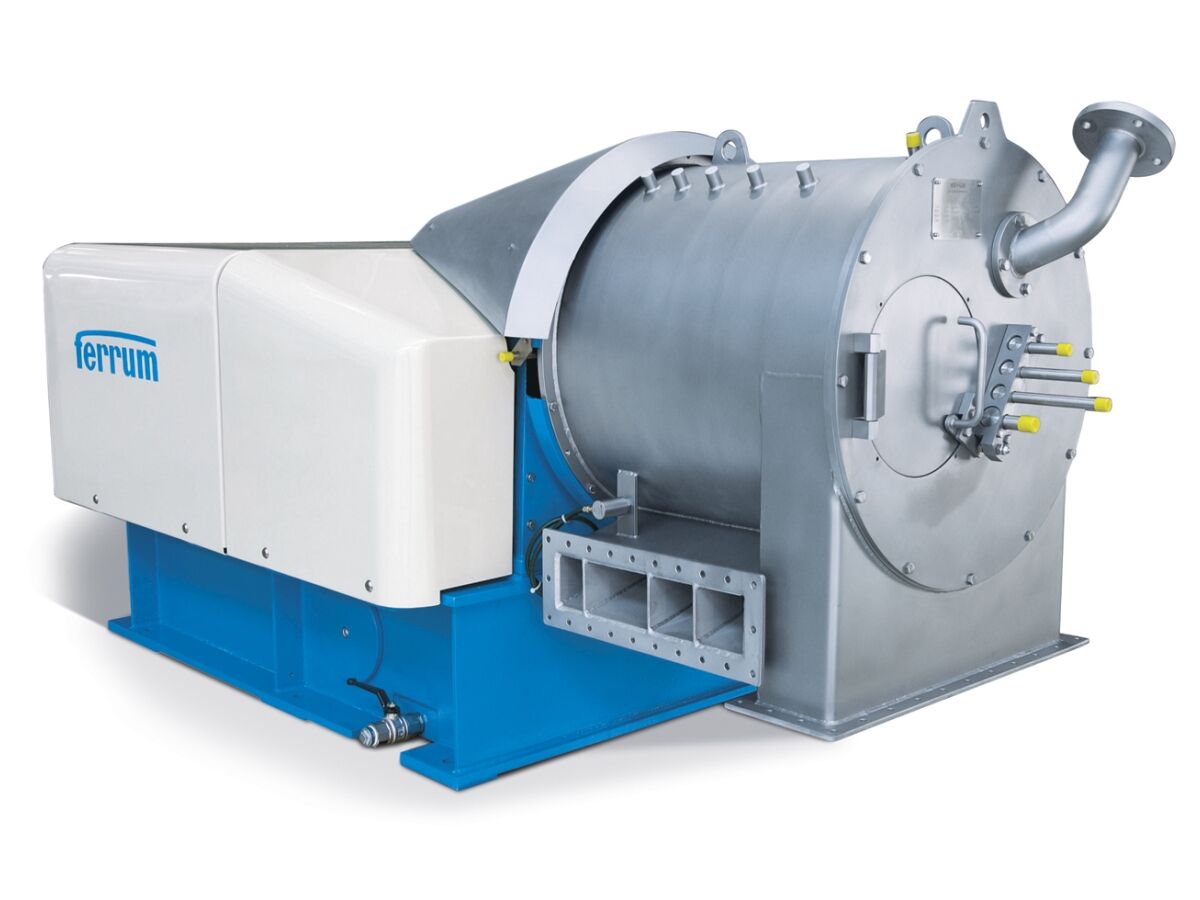

Pusher centrifuges P-32 to P-50
Light design
The pusher centrifuges P-32 to P-50 are a new development from Ferrum. Thanks to their high-performance hydraulics, the machines have compact dimensions and can be operated with low oil volumes. Ferrum pusher centrifuges P-32 to P-50 guarantee best solid-liquid separation with high and constant product quality in the basic, agricultural and petrochemical industries.
Features
- Hydraulic pusher drive for high pusher forces, operated with low oil volumes
- Special designs, e.g. gas tight pusher centrifuge, explosion proof, etc.
- Application specific optimisation possibilities: Inlet and discharge section, sieve segments, solids discharge, product washing, etc.
Technical data
| P-32 | P-40 | P-50 | Unit | |
|---|---|---|---|---|
| Basket diameter | 320 | 400 | 500 | [mm] |
| Number of stages | 1 - 2 | 1 - 2 | 1 - 2 | - |
| Max. rotor speed | 2900 | 2600 | 2100 | [min-1] |
| Max. number of strokes | 80 | 80 | 80 | [min-1] |
| Max. G force | 1504 | 1511 | 1233 | [g] |
| El. power required with NaCl, rotation / stroke | 7 / 4 | 11 / 6 | 22 / 12 | [kW] |
| Operating weight without vibration isolation (with oil filling) | 2000 | 2100 | 3100 | [kg] |
| Operating weight with vibration isolation, without counterweight (with oil filling) | 2470 | 2570 | 3625 | [kg] |
| Maximum NaCl throughput (dependent on feed conditions) | 6 | 10 | 18 | [t/h] |
| Dimensions | ||||
|---|---|---|---|---|
| Length | 2400 | 2450 | 2800 | [mm] |
| Width | 1250 | 1250 | 1400 | [mm] |
| Height without vibration isolation | 1100 | 1100 | 1350 | [mm] |
| "Height with vibration isolation, without counterweight " | 1250 | 1250 | 1500 | [mm] |
