Test centrifuges for simple product tests

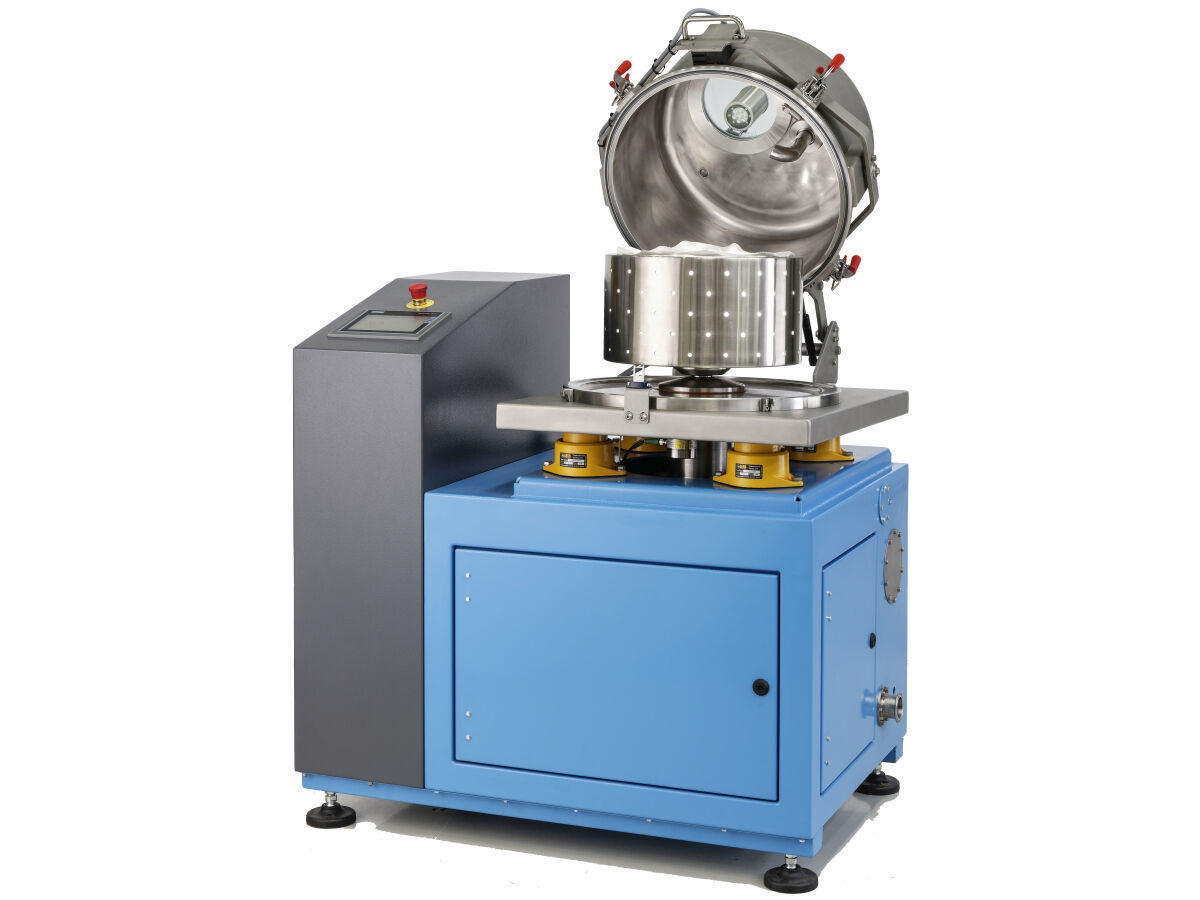

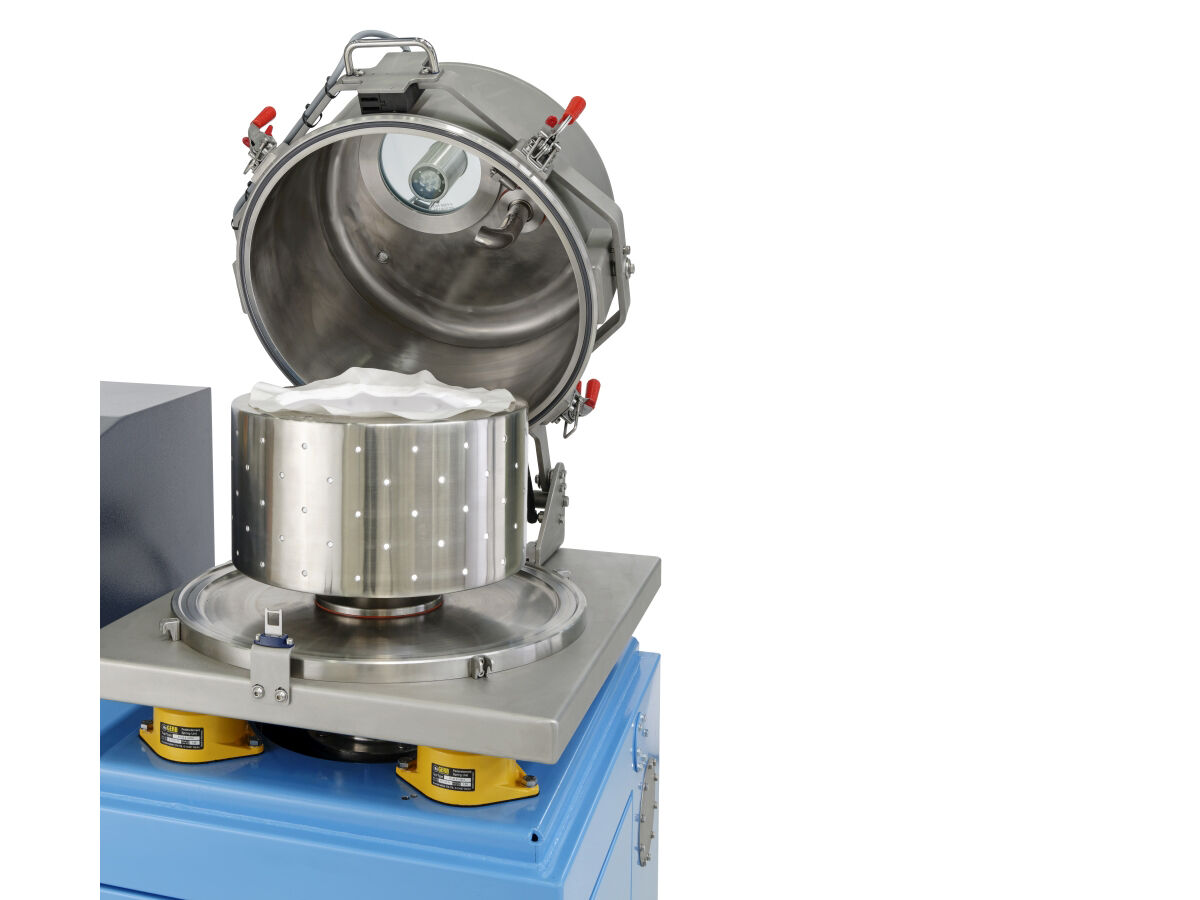

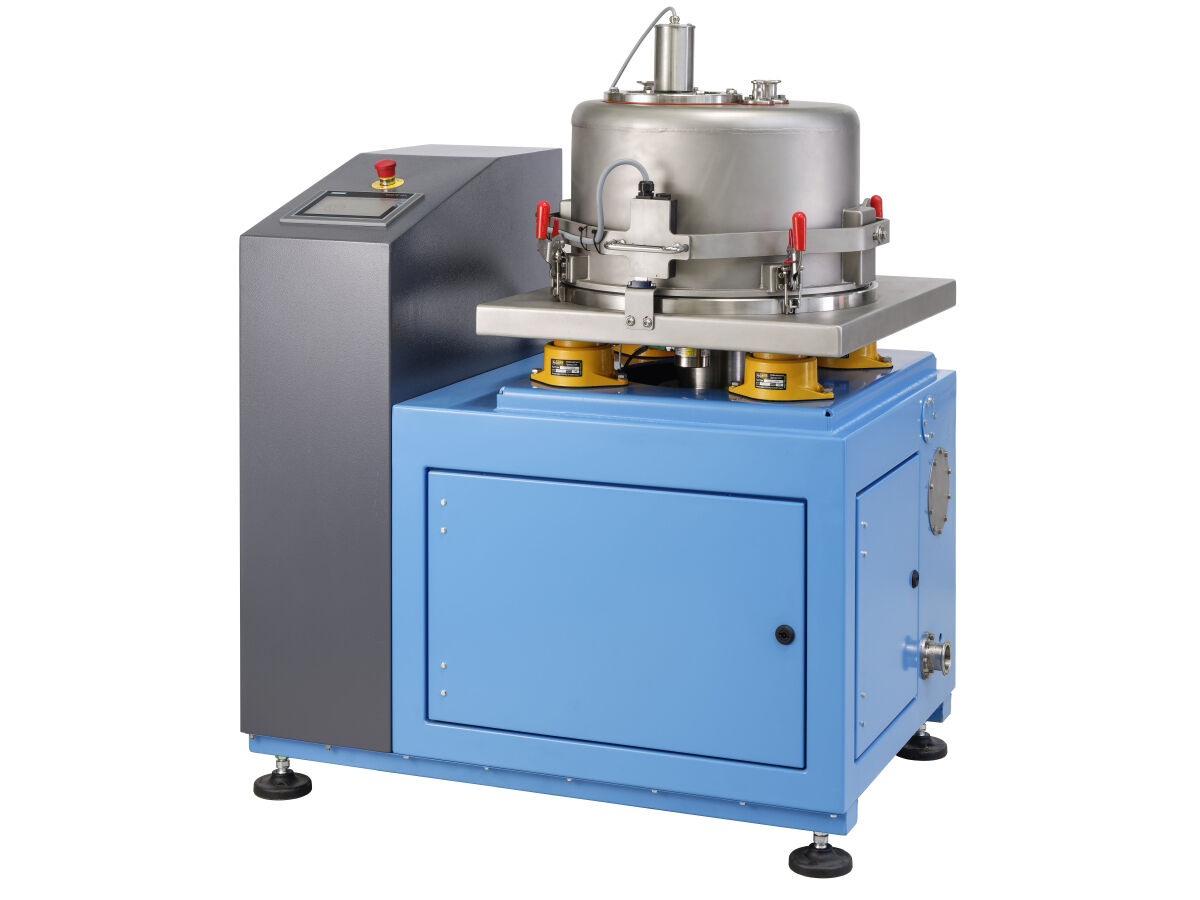

Scraper centrifuges including control panel for ready-to-use installation
Features
Vast test options with scraper centrifuges
- Optimization of existing installations
- Filtration characteristics evaluation of new applications and for the design of production plants
- Operating condition tests and feasibility studies
- Pilot tests for further scale-ups
- Washing tests
- Centrifuge performance determination (guaranteed values)
- Capacity, residual moisture, purity
Technical data
| | VTC 320 | Unit |
|---|---|---|
| Solids discharge | with filter bag | |
| Basket axis | vertical | |
| Basket diameter | 400 | [mm] |
| Basket height | 200 | [mm] |
| Filter surface | 0.25 | [m2] |
| Useful volume | 13 | [dm3] |
| Max. G force | 1630 | [g] |
| Weight centrifuge system | 650 | [kg] |
| Outer dimensions (L x W x H) | 1.2 x 0.8 x 1.6 | [m] |
