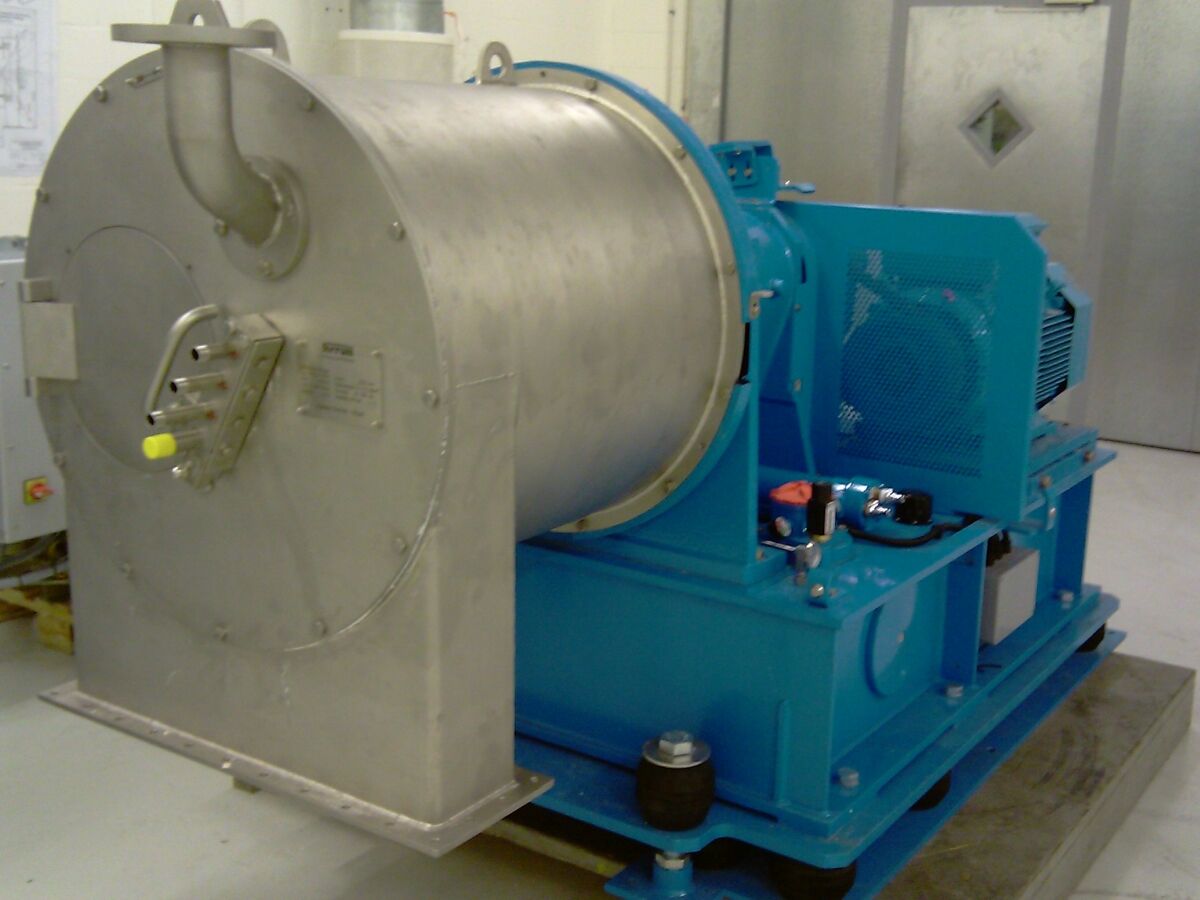

Test centrifuges for simple product tests

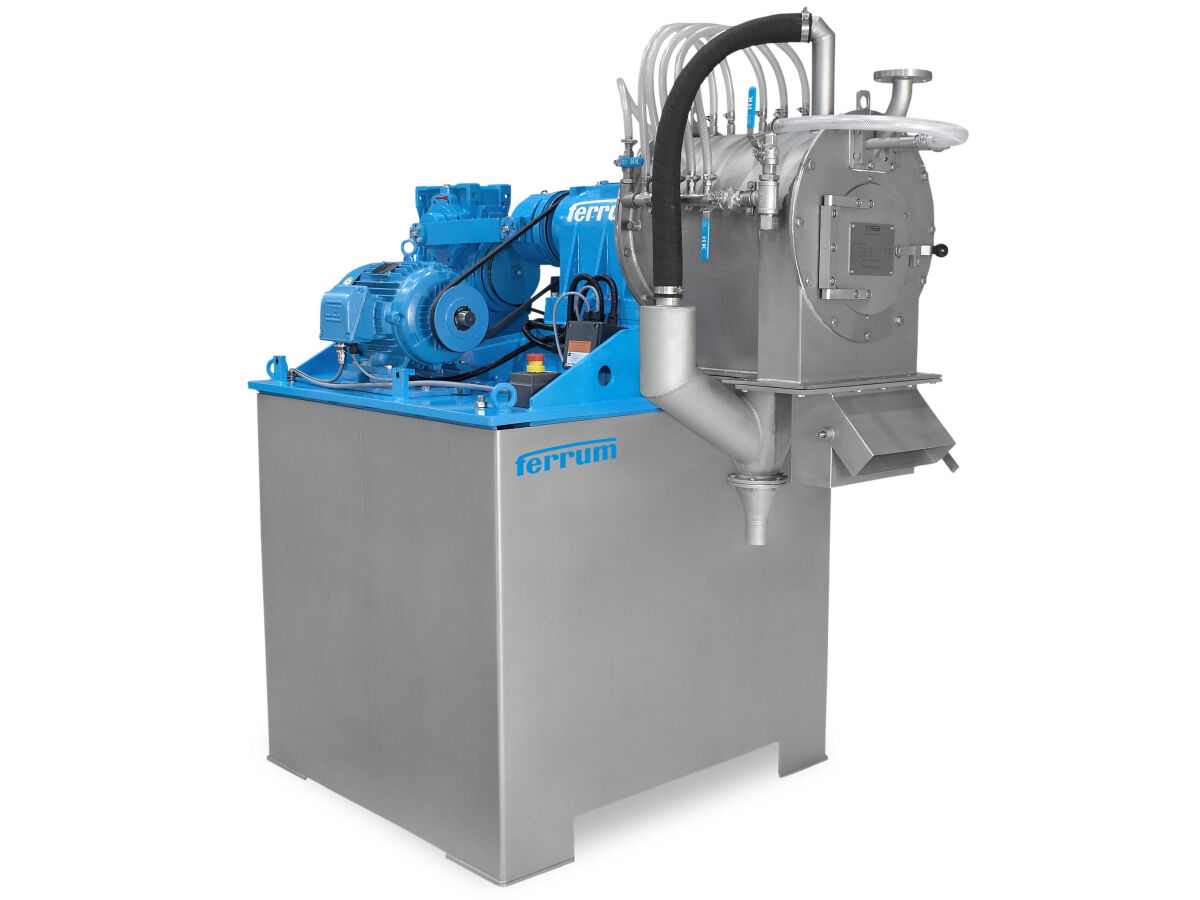

Pusher centrifuges including control panel for ready-to-use installation
Features
Vast test options with pusher centrifuges
- Optimization of existing installations
- Filtration characteristics evaluation of new applications and for the design of production plants
- Operating condition tests and feasibility studies
- Pilot tests for further scale-ups
- Washing tests
- Sieve optimisation
- Centrifuge performance determination (guaranteed values)
- Capacity, residual moisture, purity, crystal breakage
Technical data
| PM-230/2 * | P-50/2 ** | Unit | |
|---|---|---|---|
| Basket diameter | 230 | 500 | [mm] |
| Centrifuge system weight (incl. sub-construction / operating weight) | 850 (+200) | 2340 (3100) | [kg] |
| Drive power (rotor / pusher) | 4 / 3 | 30 / 22 | [kW] |
| Outer dimensions (L x W x H) | 1.2 x 1.7 x 1.84 | 2.75 x 1.4 x 1.49 | [m] |
* Option: pre-thickening cone
** without counterweight
