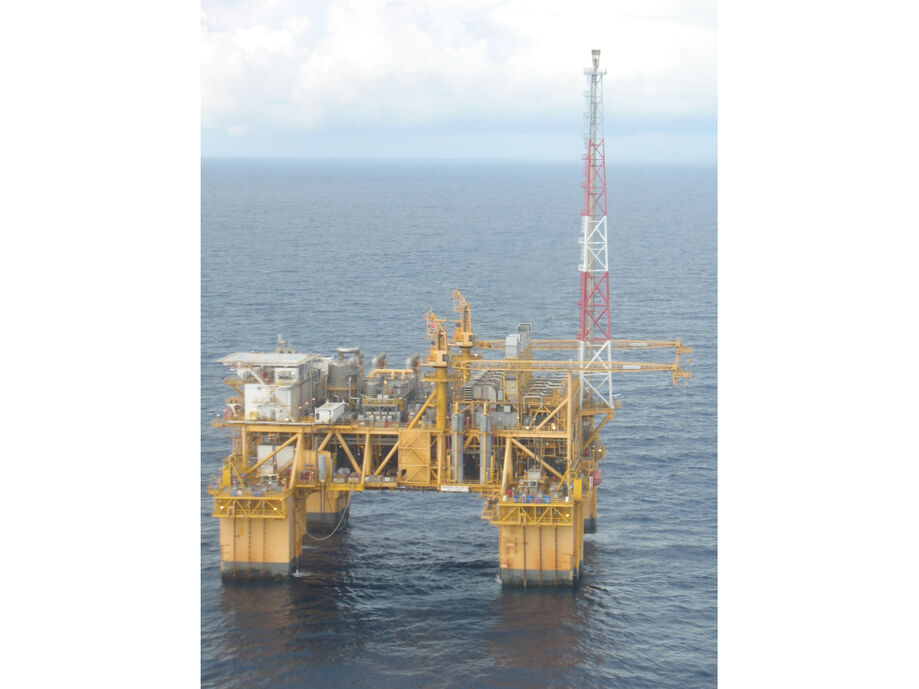

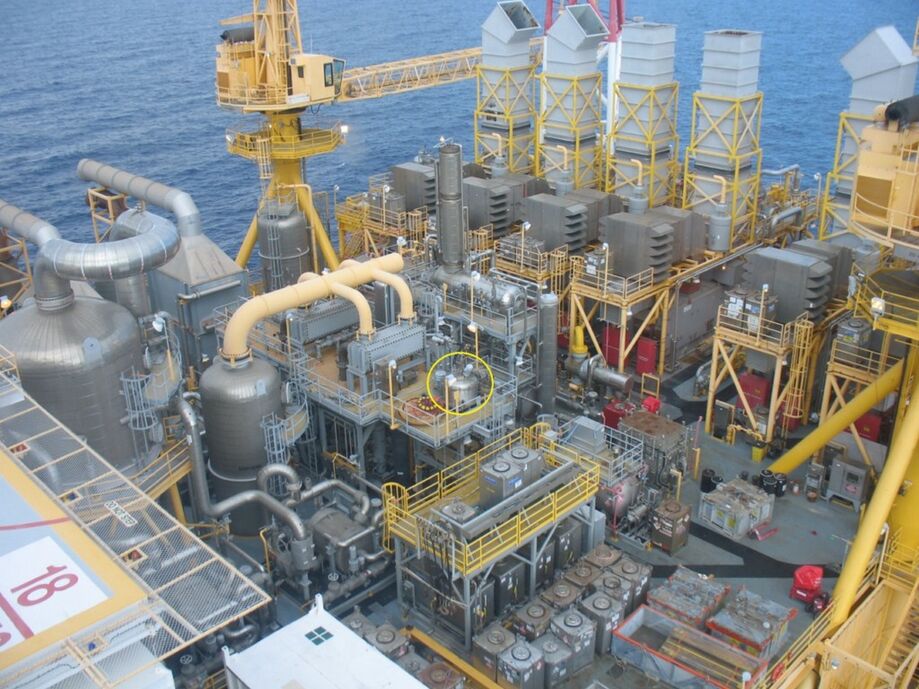

MEG Recovery centrifuge for offshore platform
Environmentally friendly

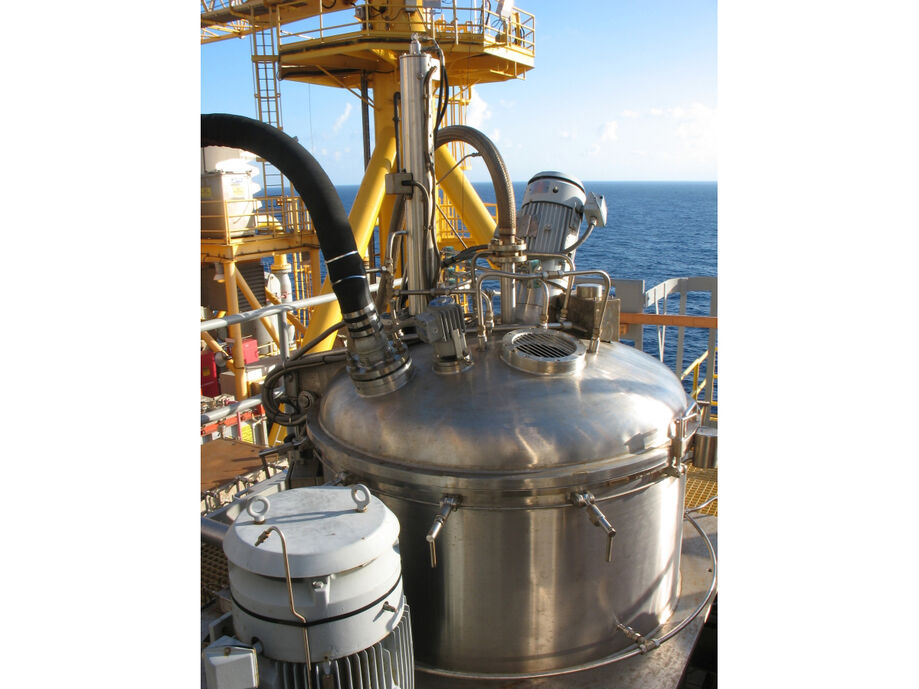

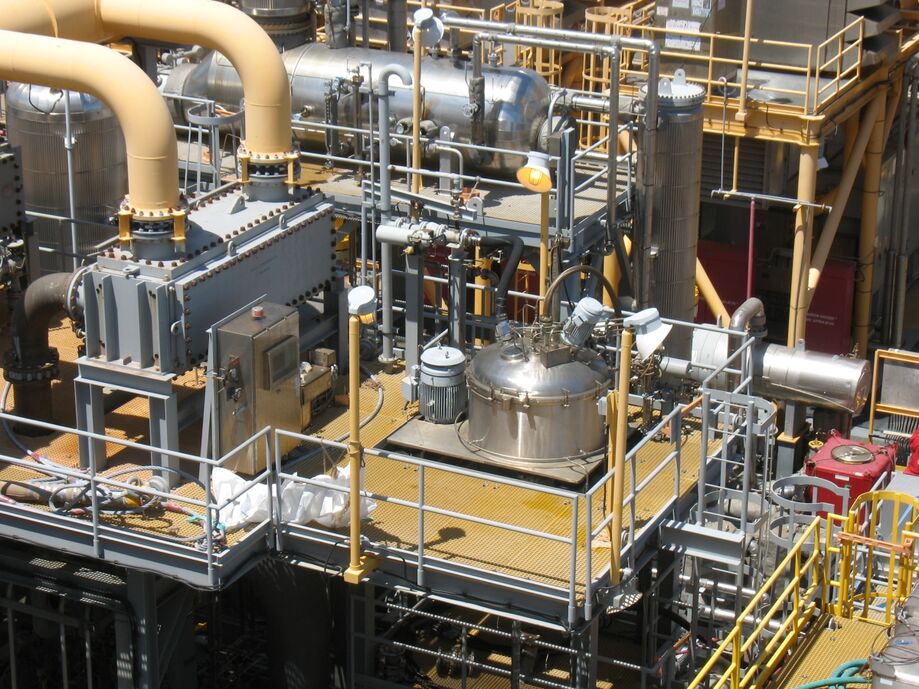

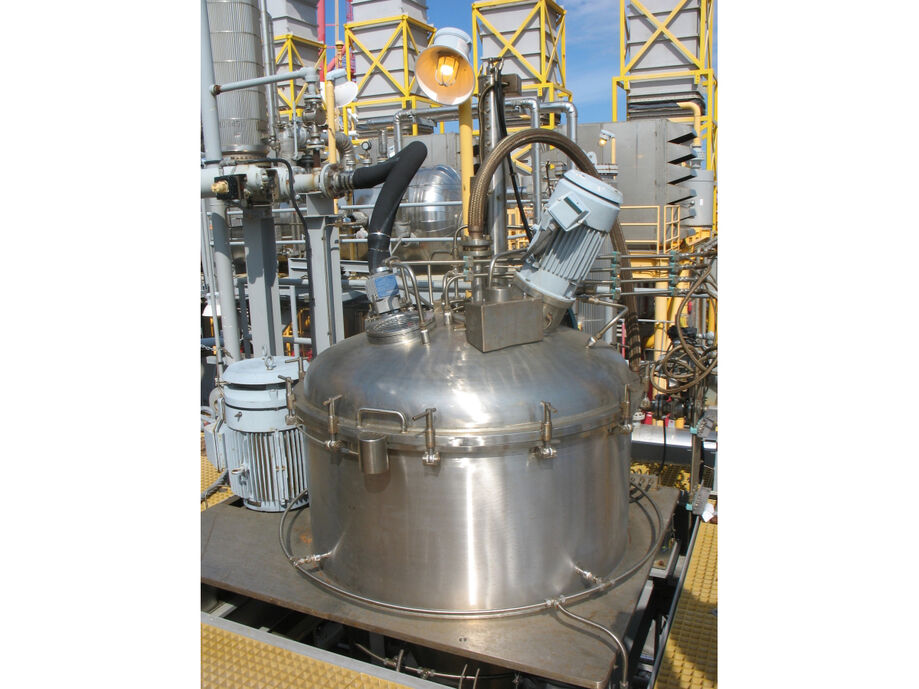

This MEG Recovery centrifuge type VBC-W (Vertical Bottom Discharge) was developed specially for this application. This centrifuge is designed for the permanent operation on offshore platforms.
Features
- Suitable for offshore conditions
- Designed for potentially explosive areas according to directive 2014/34/EU (ATEX)
- Product contacted stainless steel parts are in Duplex 22 Cr or Super Duplex 25 Cr
- Inertisation system InertoSafe® SIL 2 certified according EN 61511
- Residual moisture in NaCl < 4 %-w/w
- Solid NaCl in filtrate < 0.2 %-w/w.
Technical data
| VBC-W | 1000/500 | 1000/630 | 1250/630 | Unit |
|---|---|---|---|---|
| Basket diameter | 1000 | 1000 | 1250 | [mm] |
| Basket height | 500 | 630 | 630 | [mm] |
| Filter surface | 1.57 | 1.98 | 2.47 | [m2] |
| Useful volume (100%) | 200 | 252 | 394 | [dm3] |
| Max. load | 250 | 315 | 493 | [kg] |
| Max. rotor speed | 1200 | 1200 | 950 | [min-1] |
| Max. G force | 805 | 805 | 631 | [g] |
| Centrifuge weight (without load) | 2600 | 2700 | 3450 | [kg] |
| Centrifuge Input | ||||
|---|---|---|---|---|
| Solids content | 20 | 20 | 20 | [%-w/w] |
| Particle size | 50 - 150 | 50 - 150 | 50 - 150 | [μm] |
| Centrifuge Output | ||||
|---|---|---|---|---|
| Residual moisture | 3 - 5 | 3 - 5 | 3 - 5 | [%-w/w] |
| Solids content in mother liquor | < 0.2 | < 0.2 | < 0.2 | [%-w/w] |
| Dimensions | ||||
|---|---|---|---|---|
| Length | 1900 | 1900 | 2250 | [mm] |
| Width | 1500 | 1500 | 1740 | [mm] |
| Height (closed, scraper knife vertical movement) | 2060 | 2190 | 2520 | [mm] |
Design pressure: -100 to +500 [mbarg], operating pressure: 4-20 [mbarg], gas tightness: 40 [mbarg], product temperature range: 0-80 [°C], ambient temperature: 10-30 [°C]
Other pressure and temperature ranges as well as motor sizes upon request.
| VBC-W | 1250/800 | 1600/800 | 1600/1000 | Unit |
|---|---|---|---|---|
| Basket diameter | 1250 | 1600 | 1600 | [mm] |
| Basket height | 800 | 800 | 986 | [mm] |
| Filter surface | 3.14 | 4.02 | 4.96 | [m2] |
| Useful volume (100%) | 501 | 820 | 1011 | [dm3] |
| Max. load | 626 | 1025 | 1263 | [kg] |
| Max. rotor speed | 950 | 750 | 750 | [min-1] |
| Max. G force | 631 | 503 | 503 | [g] |
| Centrifuge weight (without load) | 3600 | 6200 | 6400 | [kg] |
| Centrifuge Input | ||||
|---|---|---|---|---|
| Solids content | 20 | 20 | 20 | [%-w/w] |
| Particle size | 50 - 150 | 50 - 150 | 50 - 150 | [μm] |
| Centrifuge Output | ||||
|---|---|---|---|---|
| Residual moisture | 3 - 5 | 3 - 5 | 3 - 5 | [%-w/w] |
| Solids content in mother liquor | < 0.2 | < 0.2 | < 0.2 | [%-w/w] |
| Dimensions | ||||
|---|---|---|---|---|
| Length | 2250 | 2650 | 2650 | [mm] |
| Width | 1740 | 2000 | 2000 | [mm] |
| Height (closed, scraper knife vertical movement) | 2690 | 3000 | 3200 | [mm] |
Design pressure: -100 to +500 [mbarg], operating pressure: 4-20 [mbarg], gas tightness: 40 [mbarg], product temperature range: 0-80 [°C], ambient temperature: 10-30 [°C]
Other pressure and temperature ranges as well as motor sizes upon request.
