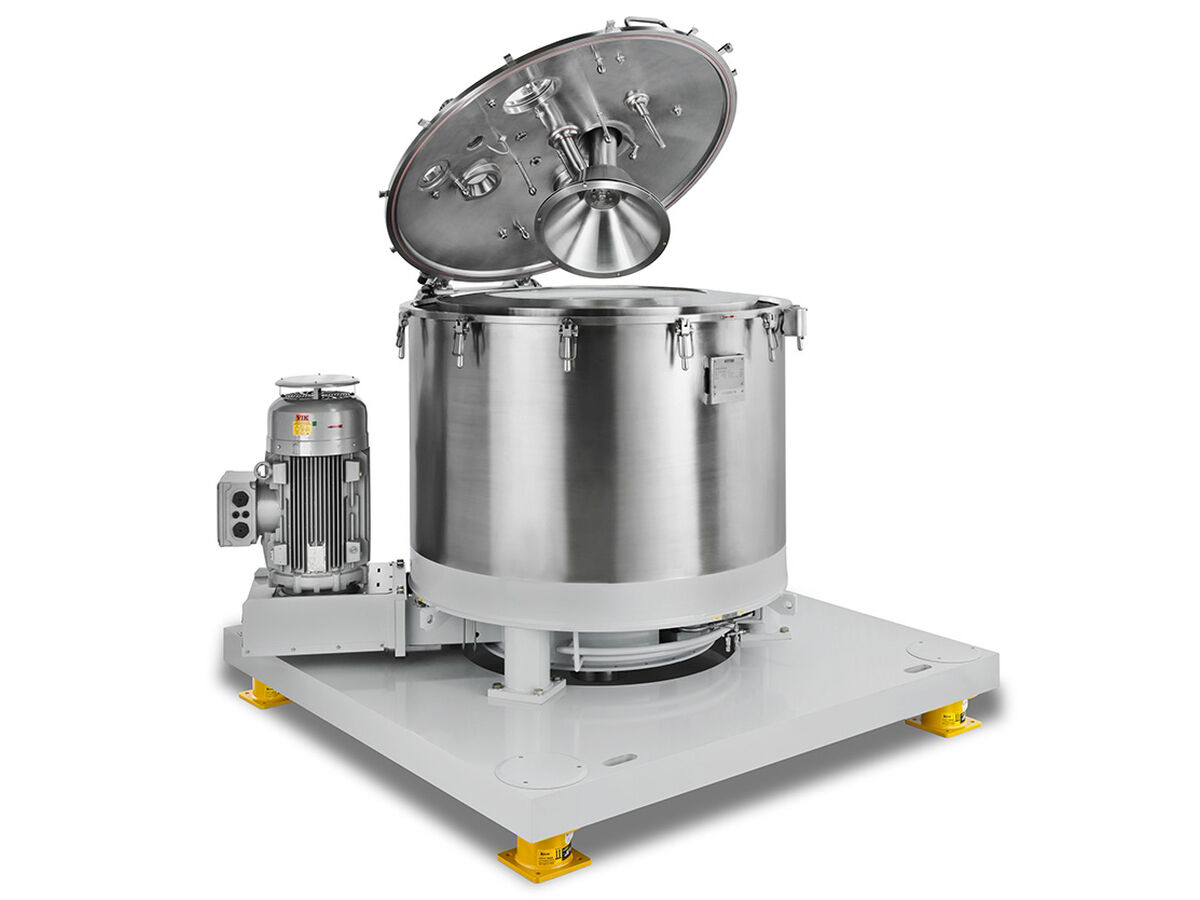

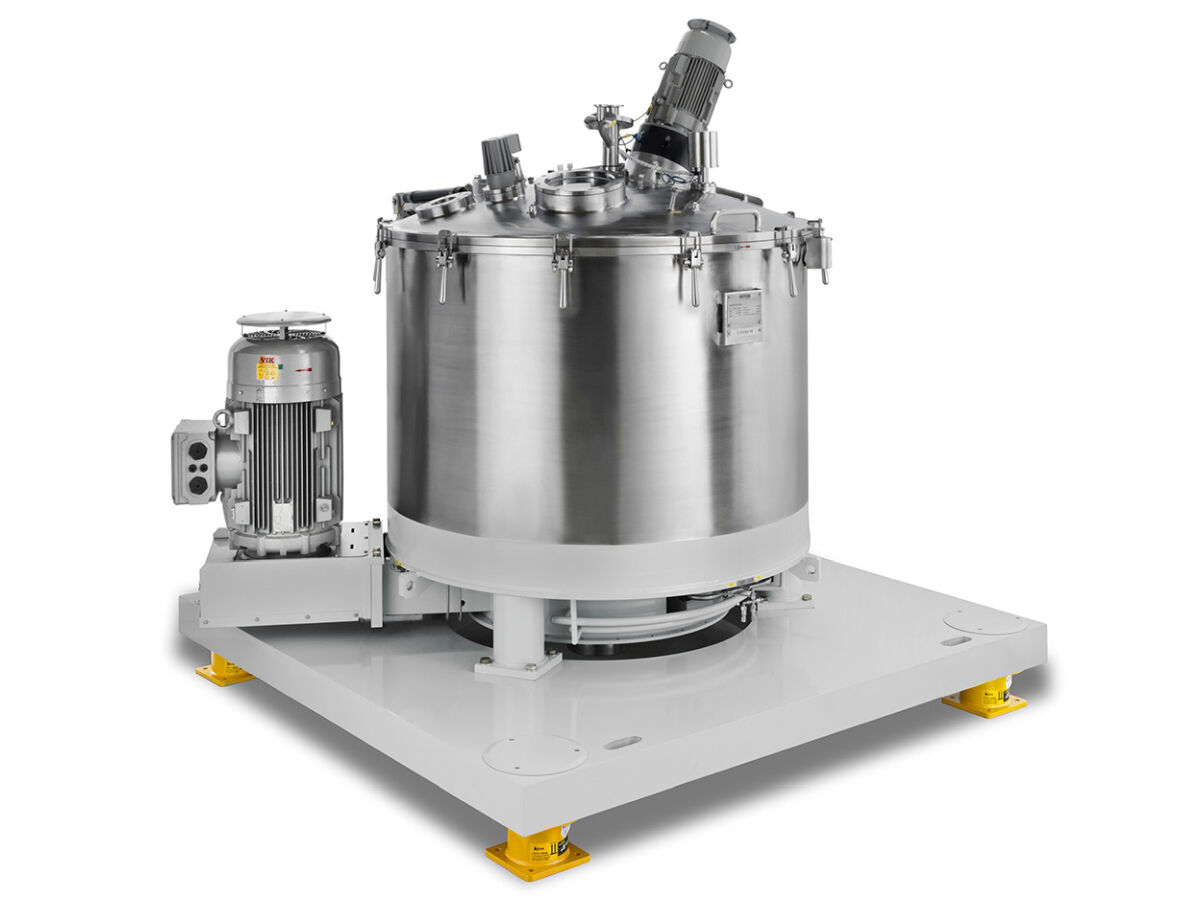

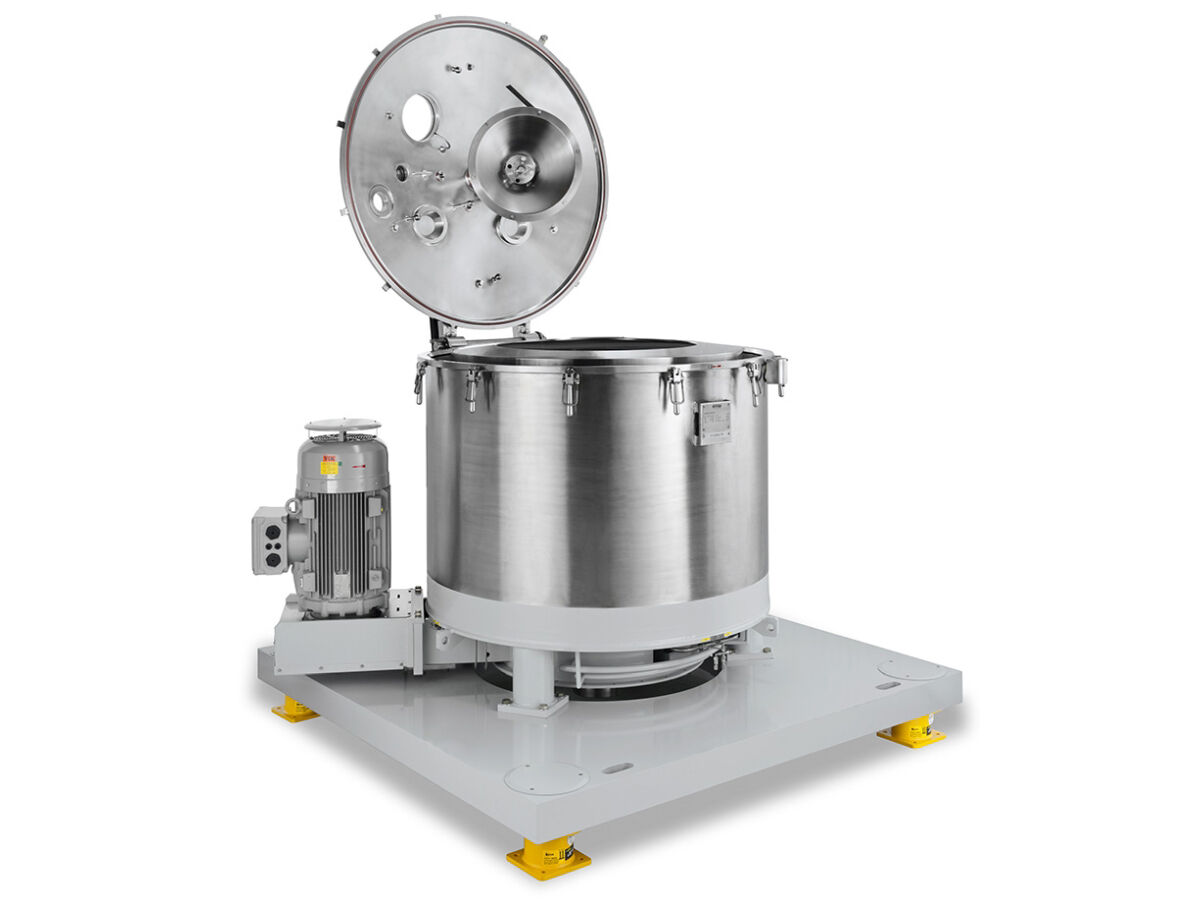

The vertical basket centrifuges of the type DZF Pull Action Filter centrifuges are designed for different applications in solid-liquid separation. The discharge system is a Ferrum innovation (patented) and functions without using a scraper knife. Application-specific feed and wash systems, CIP systems and Ferrum InertoSafe® systems may be adapted according to your requirements.
The Pull Action Filter centrifuges are used in the pharmaceutical and chemical manufacturing industry with products sensitive to crystal breakage and/or with thixotropic behaviour.
DZF | 1000/500 | 1250/630 | Unit |
---|---|---|---|
Basket diameter | 1000 | 1250 | [mm] |
Basket height | 500 | 630 | [mm] |
Filter surface | 1.57 | 2.47 | [m2] |
Useful volume (100%) | 200 | 394 | [dm3] |
Max. load | 250 | 493 | [kg] |
Max. rotor speed | 1200 | 950 | [min-1] |
Max. G force | 805 | 631 | [g] |
Centrifuge weight (without load) | 5900 | 7800 | [kg] |
Basket weight (1.4404) | 520 | 875 | [kg] |
Motor power for main driveb | 18.5 | 22.0 | [kW] |
Motor power for feed/wash disk (option) | 3.0 | 3.0 | [kW] |
Dimensions | |||
---|---|---|---|
Length | 1900 | 2250 | [mm] |
Width | 1500 | 1740 | [mm] |
Height | 1940 | 2290 | [mm] |
Design pressure: -100 to +500 [mbarg], operating pressure: 4-20 [mbarg], gas tightness: 40 [mbarg], product temperature range: 0-80 [°C], ambient temperature: 10-30 [°C]
Other pressure and temperature ranges as well as motor sizes upon request.
