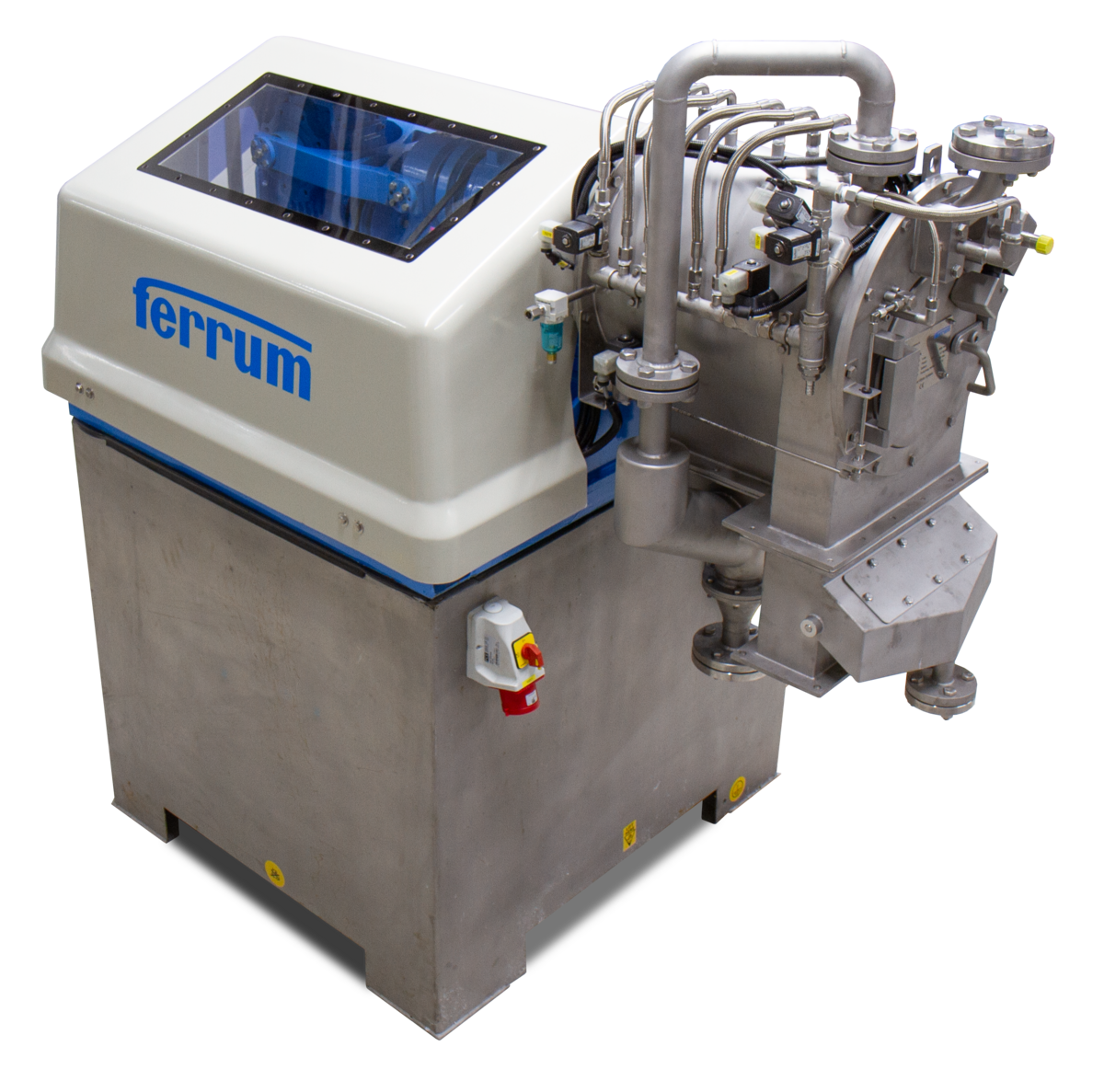

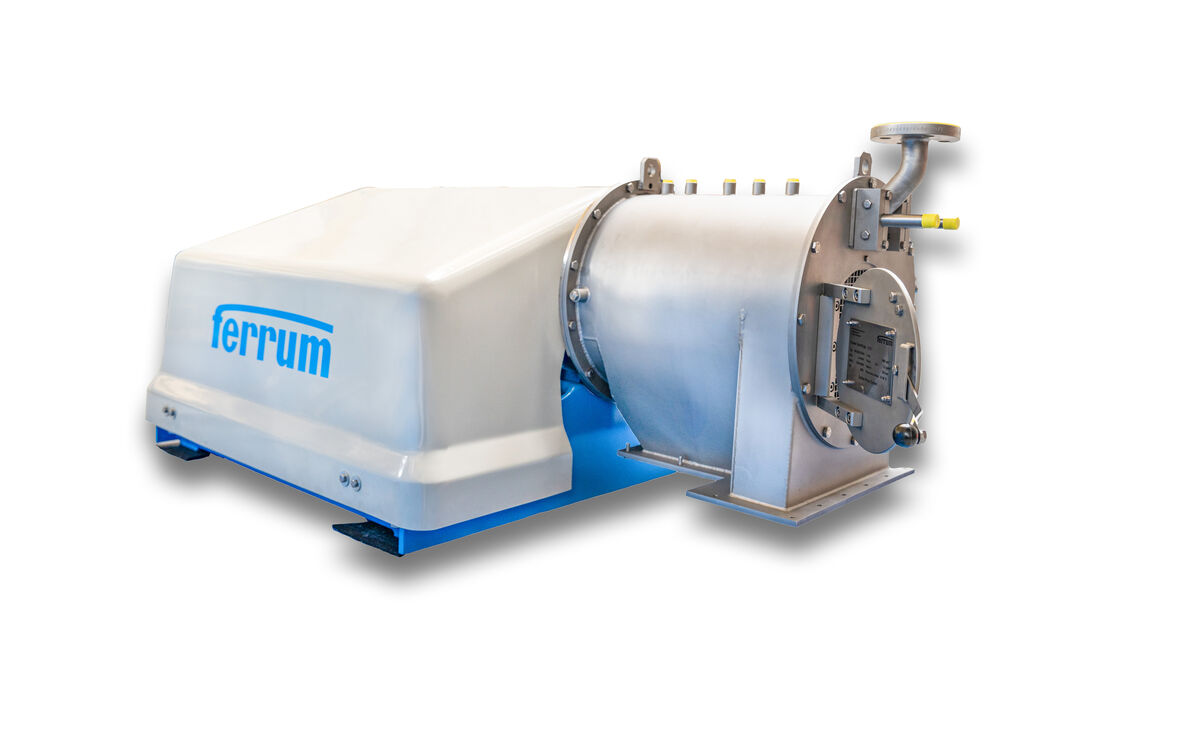

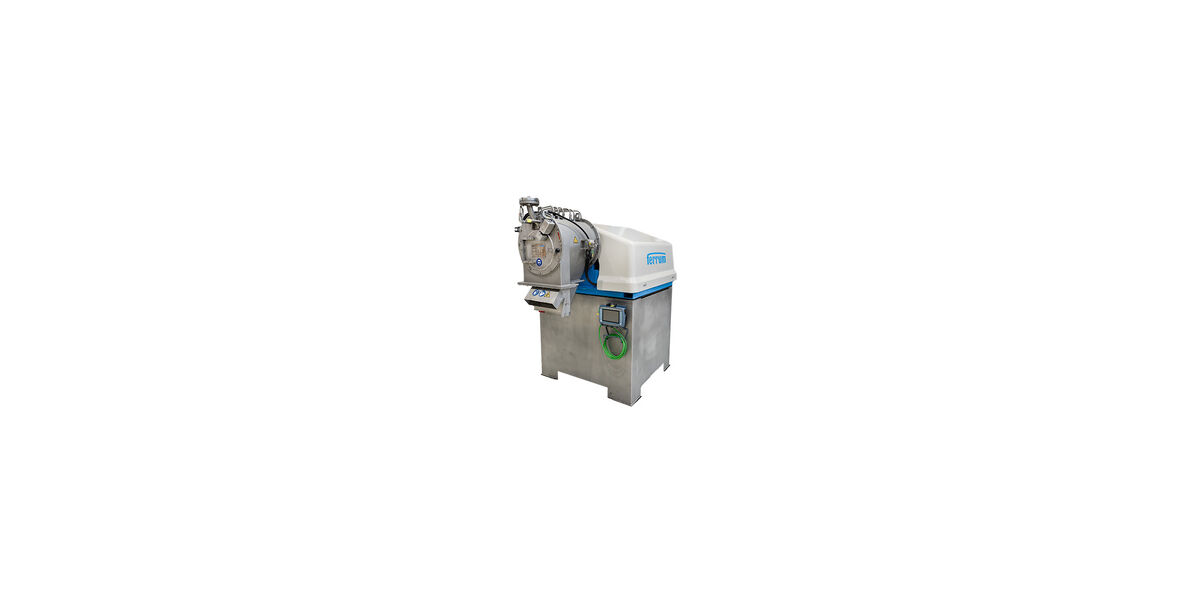

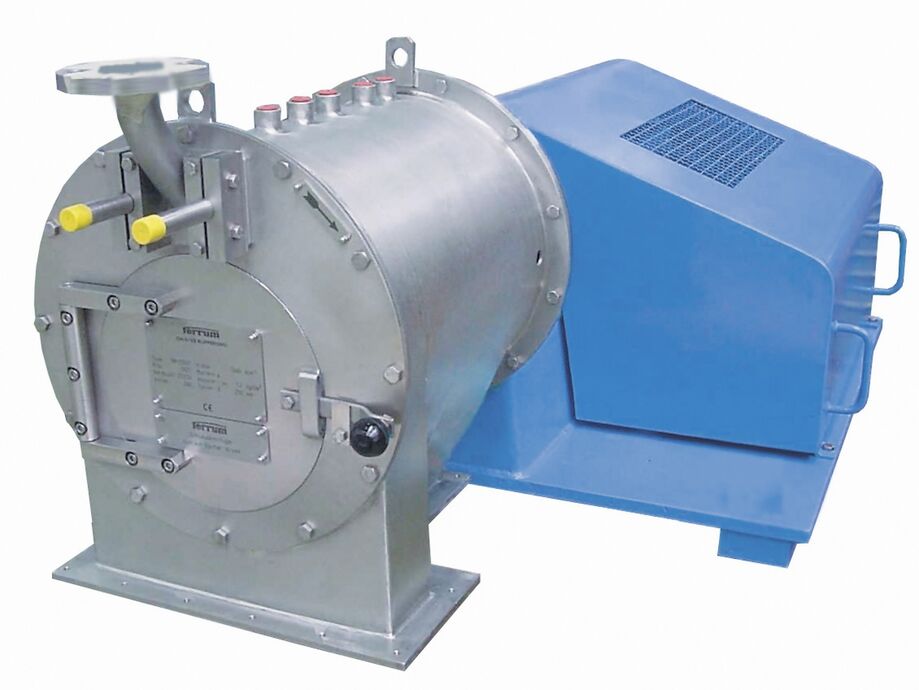

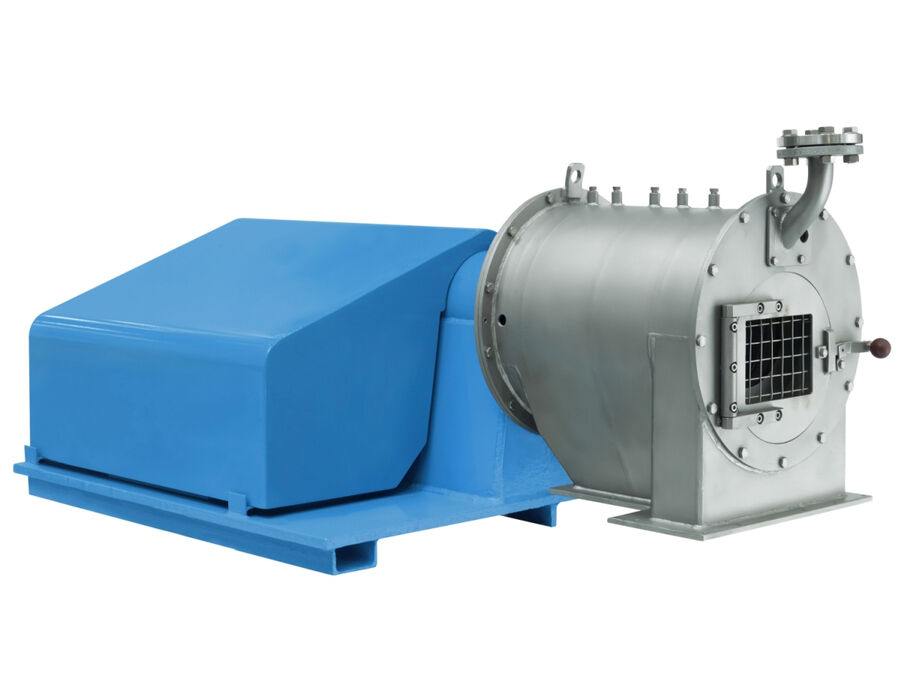

Pusher centrifuge PM-23
Simple and robust
Based on the very successful Sulzer Escher Wyss design, Ferrum has consistently developed this pusher centrifuge further, always in accordance with the latest requirements and guidelines. The PM-23 guarantees best solid-liquid separation with high and constant product quality in the basic, agricultural and petrochemical industries.
Features

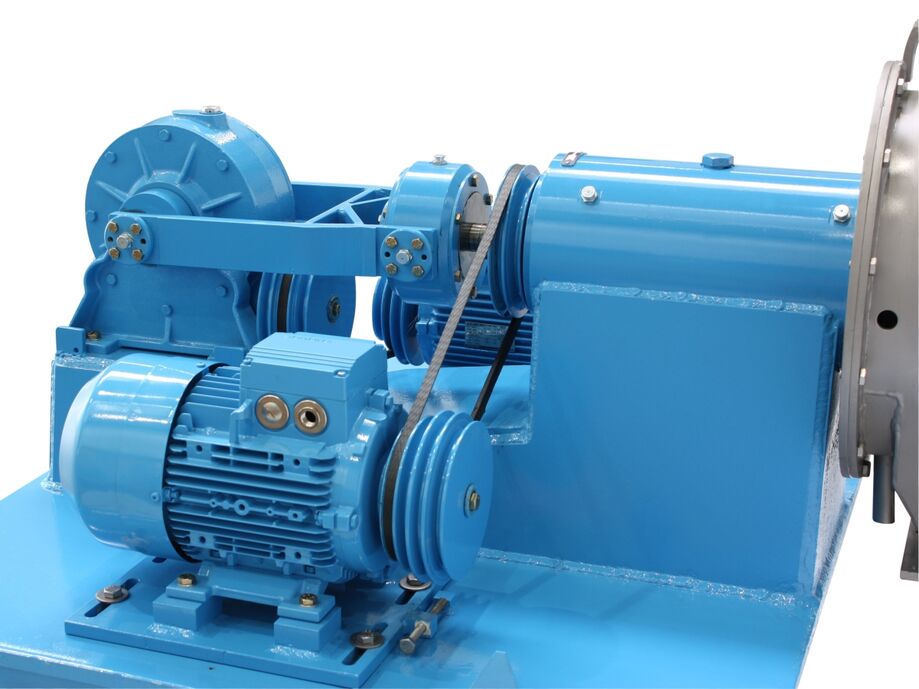

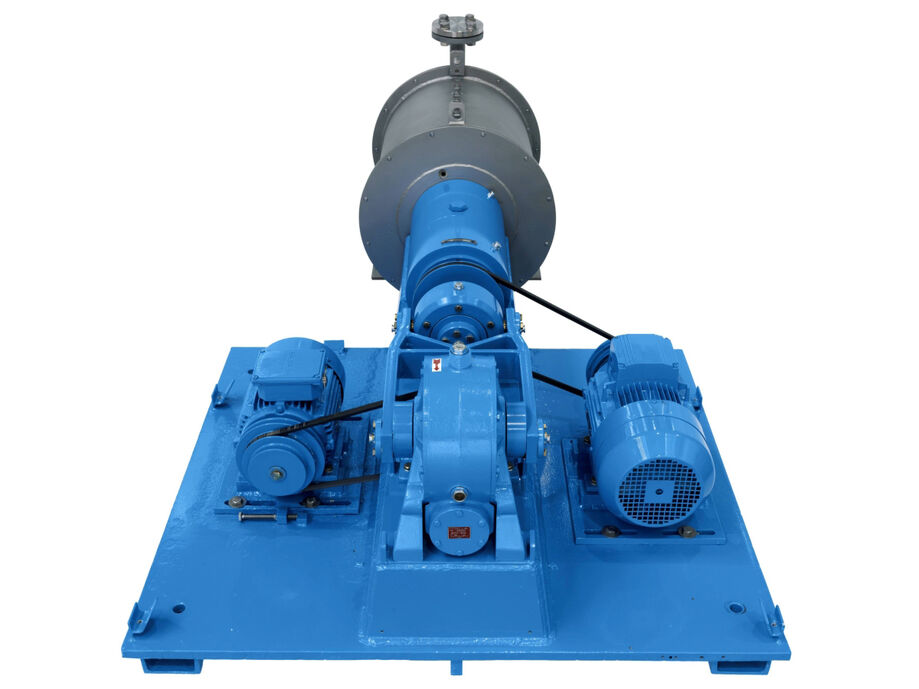

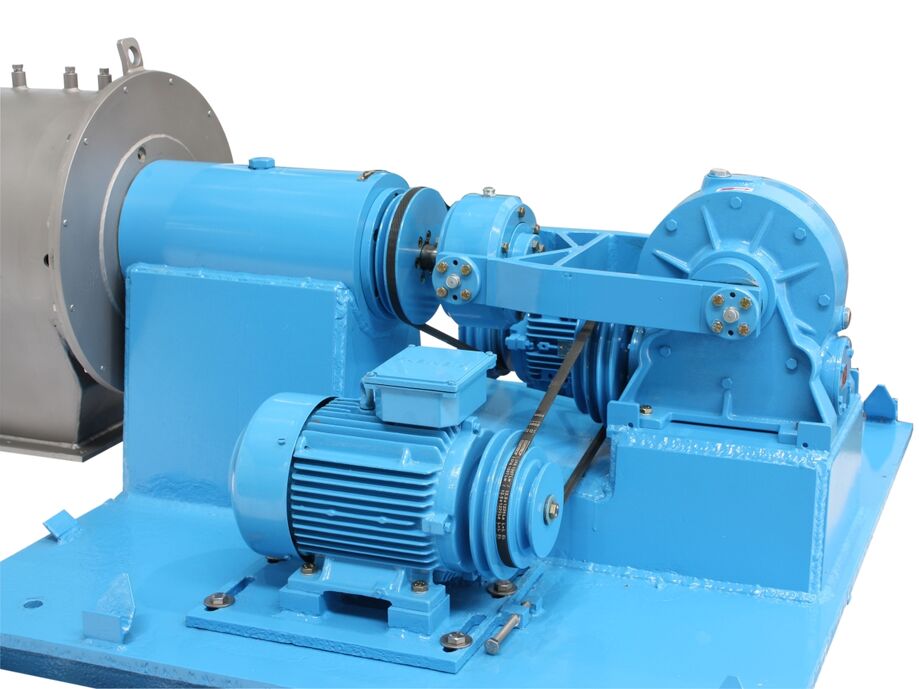

- Purely mechanical pusher drive without hydraulic system
- Special designs, e.g. gas tight pusher centrifuge, explosion proof, etc.
- Application specific optimisation possibilities: Inlet and discharge section, sieve segments, solids discharge, product washing, etc.
Technical data
| | PM-23 | Unit |
|---|---|---|
| Basket diameter | 230 | [mm] |
| Number of stages | 1 - 2 | - |
| Max. rotor speed | 3600 | [min-1] |
| Max. number of strokes | 100 | [min-1] |
| Max. G force | 1666 | [g] |
| El. power required with NaCl, rotation / stroke | 2 / 1 | [kW] |
| Operating weight without vibration isolation | 800 | [kg] |
| Operating weight with vibration isolation | 870 | [kg] |
| Maximum NaCl throughput (dependent on feed conditions) | 1.5 | [t/h] |
| Dimensions | | |
|---|---|---|
| Length | 1750 | [mm] |
| Width | 1200 | [mm] |
| Height without vibration isolation | 740 | [mm] |
| Height with vibration isolation, without counterweight | 860 | [mm] |
