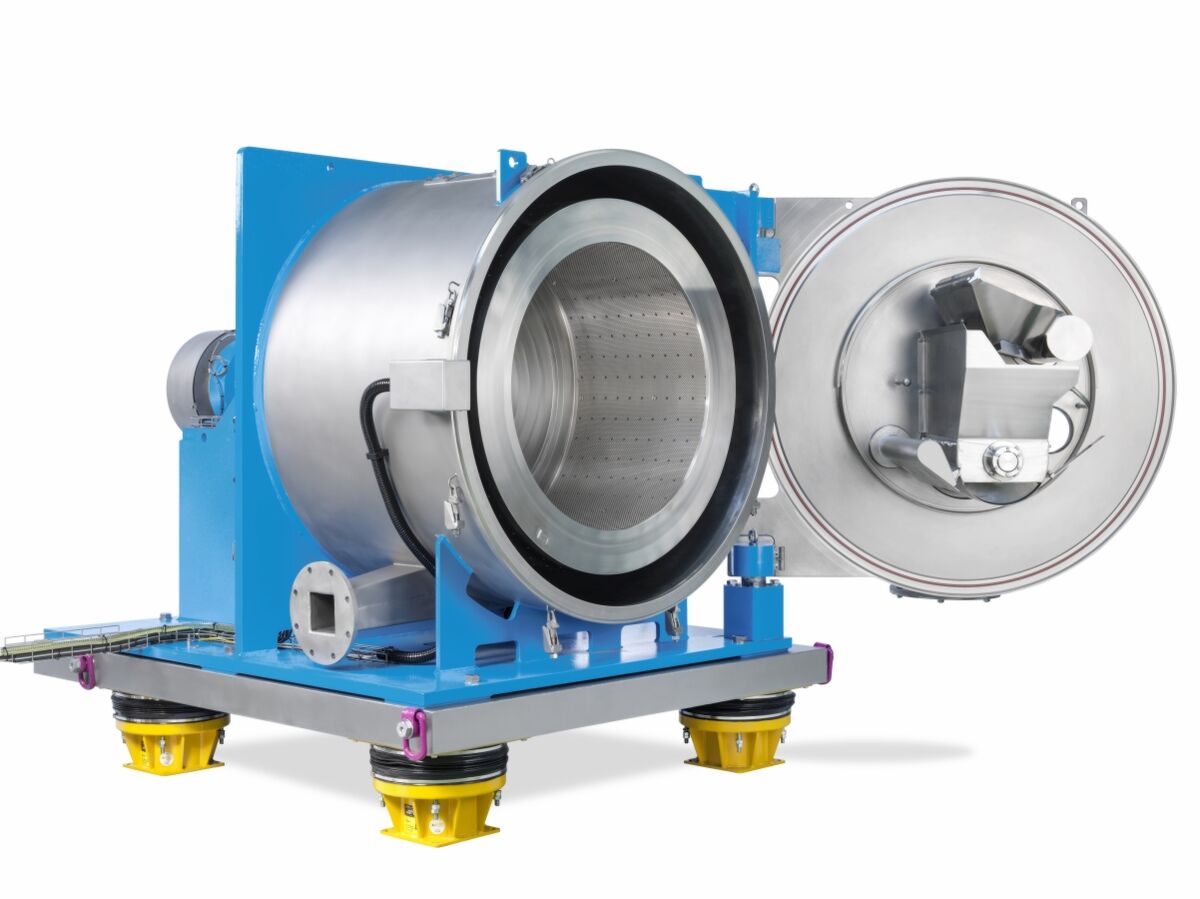

Horizontal Chemical centrifuges HCZ
Durable performance
The horizontal chemical centrifuges were specially designed for high throughputs and continuous operation under the toughest conditions in the chemical and fine chemical industry.
Features
- Very robust, reliable and functionally optimized design in accordance with the latest standards and directives
- Bearing housing with sealing systems of the latest generation

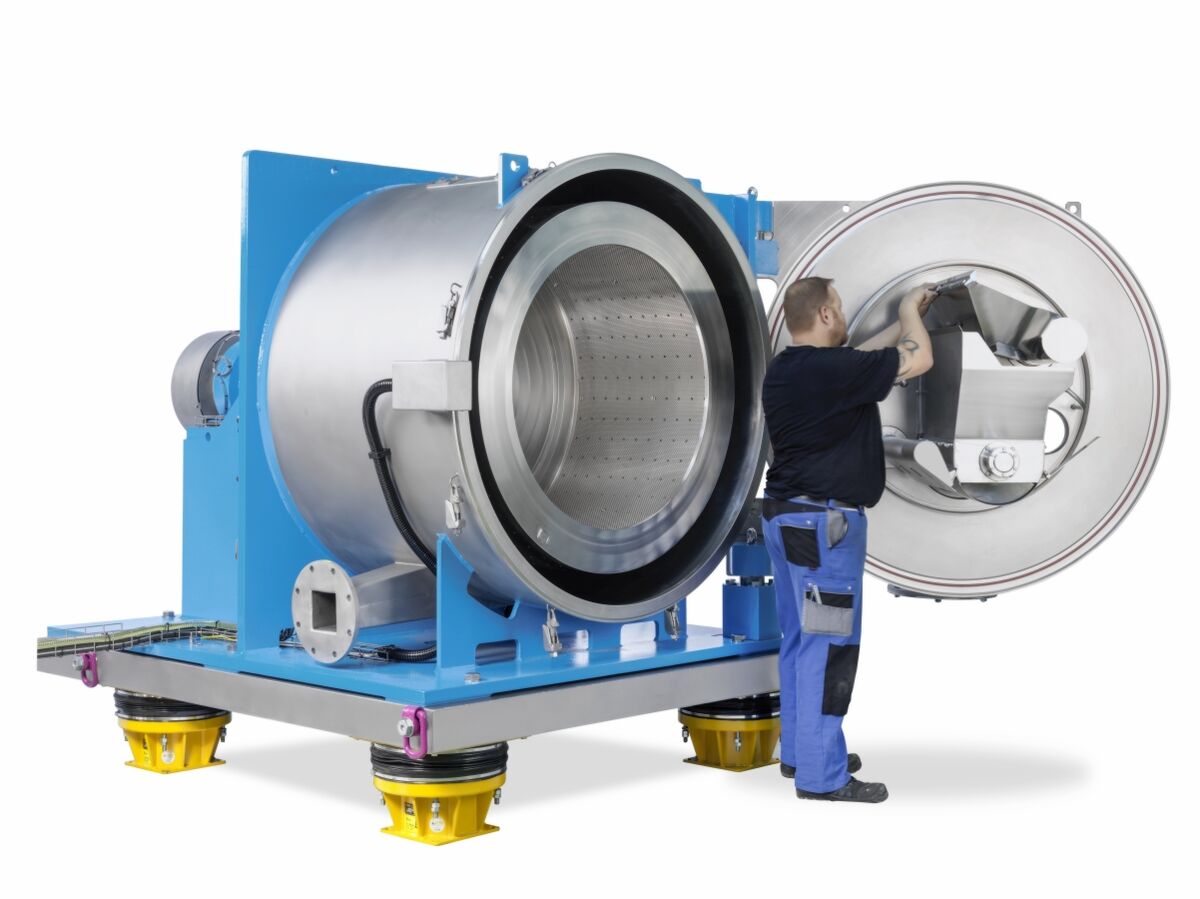

- Easy-to-maintain, hygienic design in oil-free version
- Modular design and various retrofitting options
- Suitable for potentially explosive areas according to directive 2014/34/EU (ATEX)
- Vibration isolation with concrete counter mass or active vibration isolation

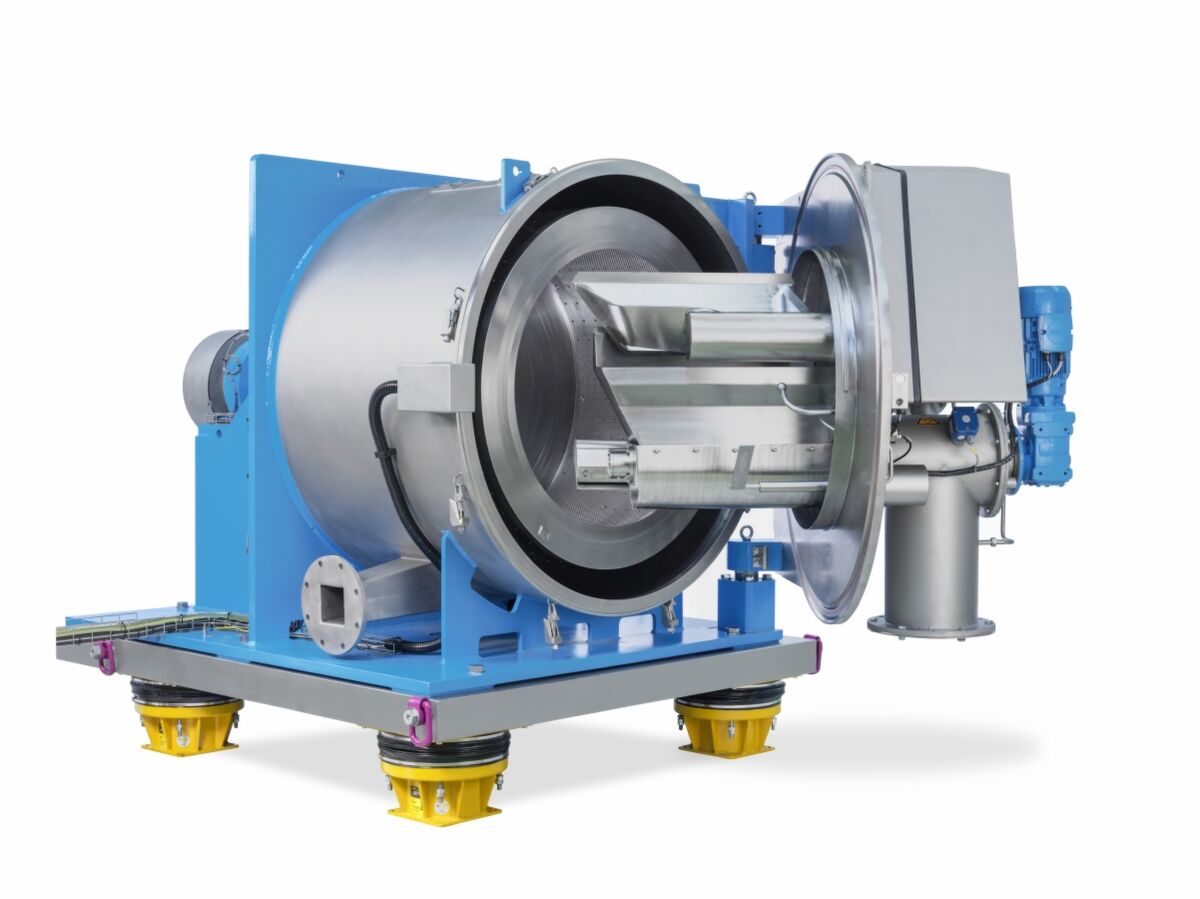

- Scraper unit drive oil-free or hydraulic
- Horizontal Chemical centrifuges in pressure vessel design on request
Technical data
| HCZ | 1000/500 | 1250/630 | 1250/800 | Unit |
|---|---|---|---|---|
| Basket diameter | 1000 | 1250 | 1250 | [mm] |
| Basket depth | 500 | 630 | 800 | [mm] |
| Filter surface | 1.57 | 2.47 | 3.14 | [m2] |
| Useful volume (100%) | 172 | 327 | 415 | [dm3] |
| Max. load | 215 | 408 | 518 | [kg] |
| Max. rotor speed | 1500 | 1200 | 1200 | [min-1] |
| Max. G force | 1258 | 1006 | 1006 | [g] |
| Centrifuge weight (without load) | 7900 | 13 000 | 13 500 | [kg] |
| Basket weight (1.4404) | 495 | 850 | 980 | [kg] |

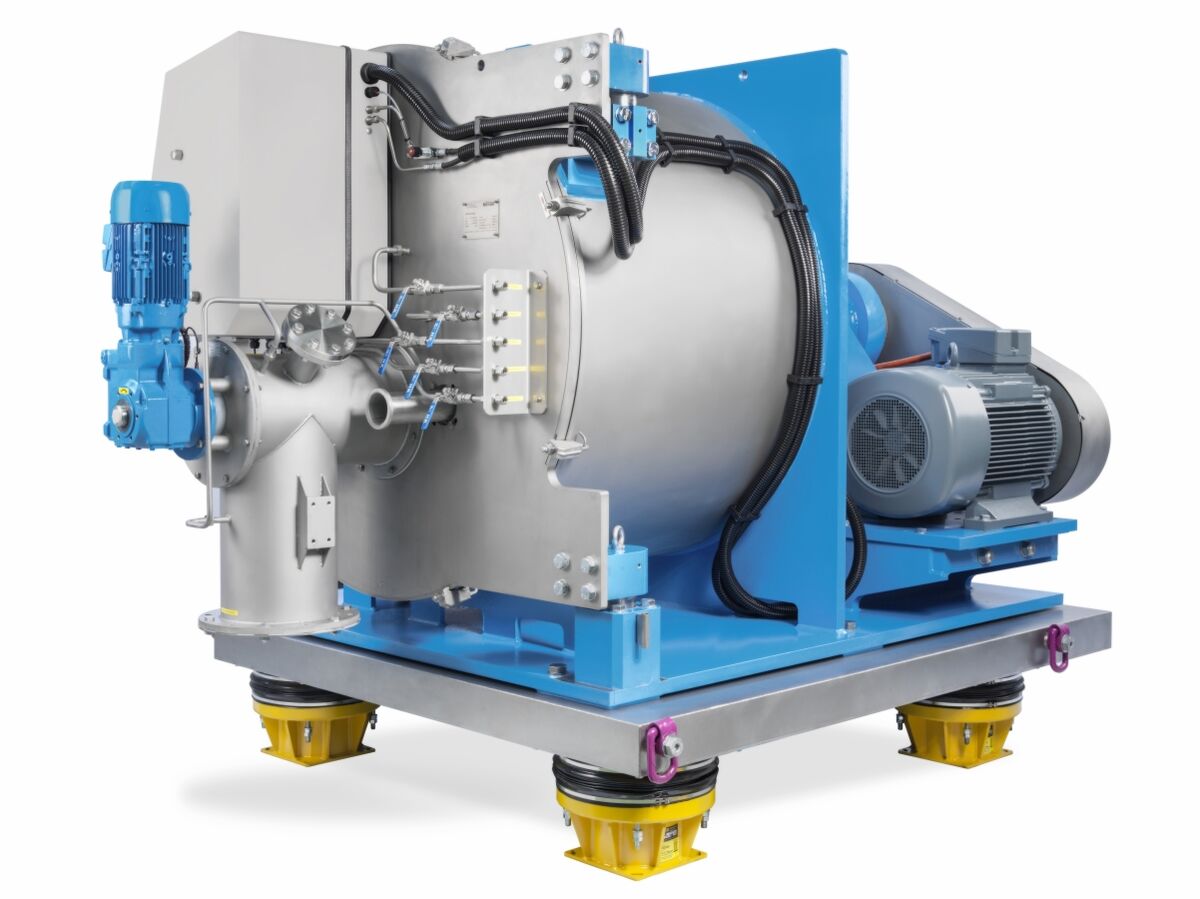

| Motor power for main drive | 37 | 55 | 55 | [kW] |
| Dimensions | | | | |
|---|---|---|---|---|

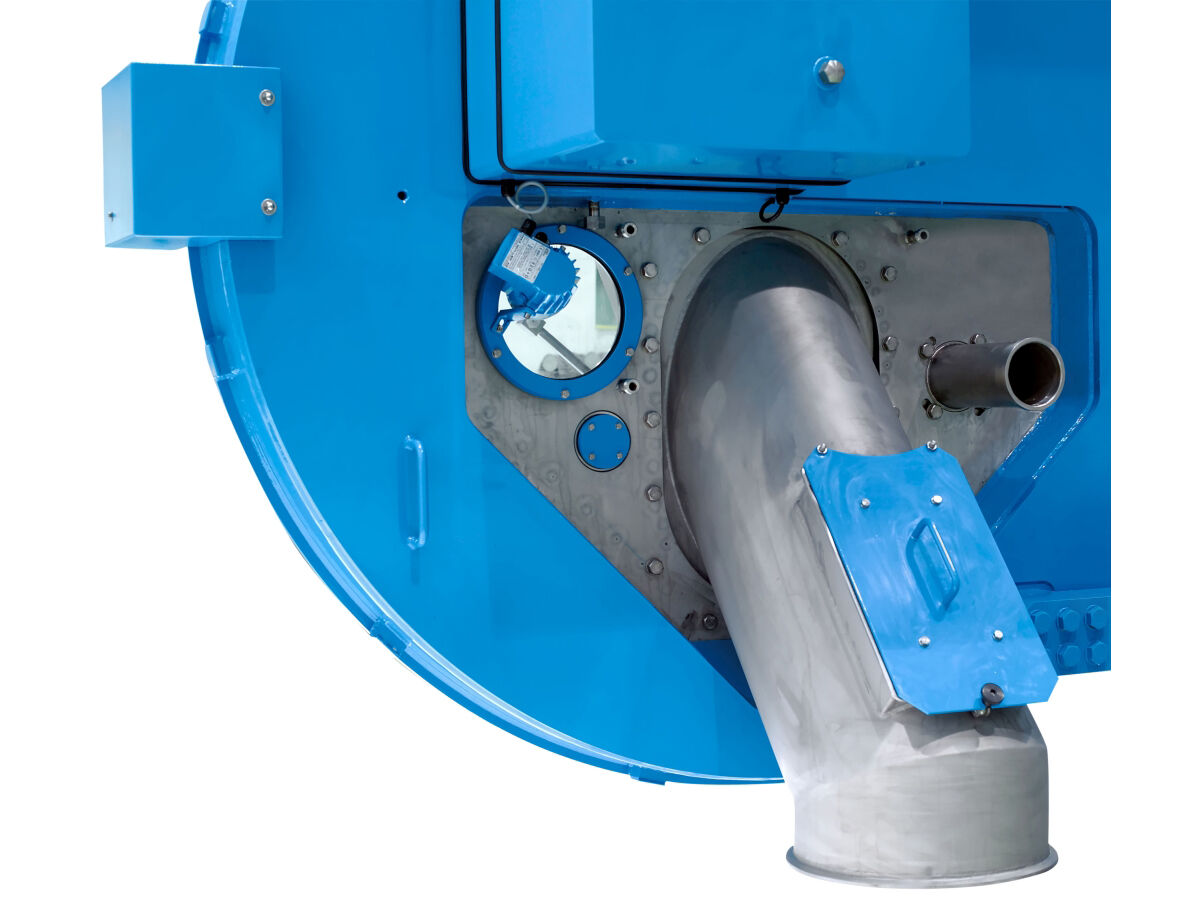

| Length | Chute | 2600 | 3000 | | [mm] |

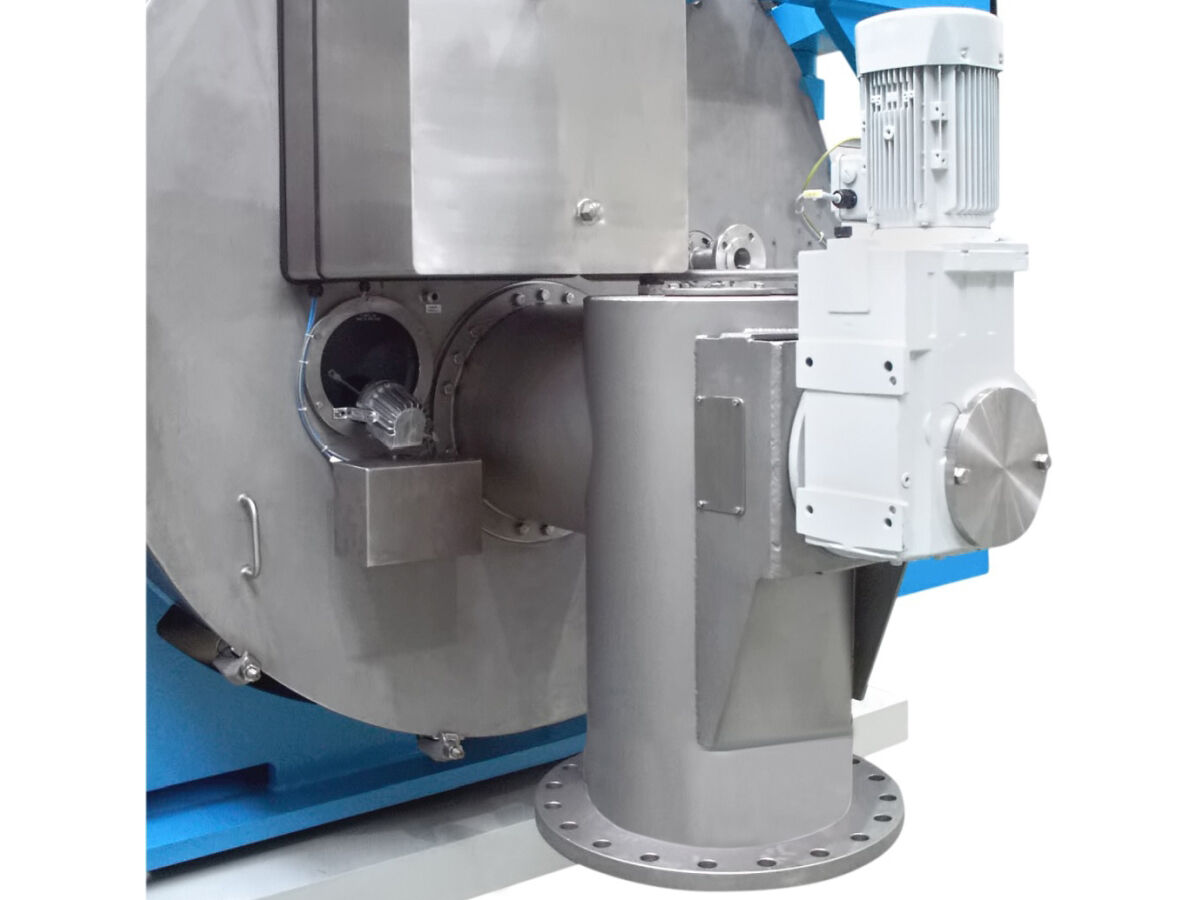

| Length | Discharge screw conveyor | 2800 | 3300 | 3400 | [mm] |
| Width | 1800 | 2000 | 2000 | [mm] |
| Height with concrete counterweight | 2200 | 2500 | 2500 | [mm] |
| Height with C-steel counterweight | 2000 | 2300 | 2300 | [mm] |
Design pressure: -100 to +500 [mbarg], operating pressure: 4-20 [mbarg], gas tightness: 40 [mbarg], product temperature range: 0-80 [°C], ambient temperature: 10-30 [°C]
Other pressure and temperature ranges as well as motor sizes upon request.
| HCZ | | 1600/800 | 1600/1000 | Unit |
|---|---|---|---|---|
| Basket diameter | | 1600 | 1600 | [mm] |
| Basket depth | | 800 | 1000 | [mm] |
| Filter surface | | 4.02 | 5.03 | [m2] |
| Useful volume (100%) | | 689 | 861 | [dm3] |
| Max. load | | 861 | 1076 | [kg] |
| Max. rotor speed | | 950 | 950 | [min-1] |
| Max. G force | | 807 | 807 | [g] |
| Centrifuge weight (without load) | | 26 000 | 28 500 | [kg] |
| Basket weight (1.4404) | | 1680 | 1780 | [kg] |
| Motor power for main drive | | 75 | 75 | [kW] |
| Dimensions | | | | |
|---|---|---|---|---|
| Length | Chute | | 3600 | | [mm] |
| Length | Discharge screw conveyor | | 4000 | 4100 | [mm] |
| Width | | 2500 | 2500 | [mm] |
| Height with concrete counterweight | | 3000 | 3000 | [mm] |
| Height with C-steel counterweight | | 2800 | 2800 | [mm] |
Design pressure: -100 to +500 [mbarg], operating pressure: 4-20 [mbarg], gas tightness: 40 [mbarg], product temperature range: 0-80 [°C], ambient temperature: 10-30 [°C]
Other pressure and temperature ranges as well as motor sizes upon request.
